FUJI FKC Differential pressure transmitter ( FUJI FKC Flow Transmitter）
FUJI FDC Differential pressure transmitter ( FUJI FDC Flow Transmitter）
FUJI FKC Flow transmitter ( FUJI FKC ）
FUJI FDC Flow transmitter ( FUJI FDC）
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code:D、H、P、S), please select the items of display (digit, scale,unit , etc).
6. Please select the tag plate according to need.(up to 14digit, consist of lettters and numbers).
FUJI FDC Differential pressure transmitter ( FUJI FDC Flow Transmitter）
FUJI FKC Flow transmitter ( FUJI FKC ）
FUJI FDC Flow transmitter ( FUJI FDC）
1.Product Introduce
The Fuji FCX -AIII differential pressure (flow) transmitter accurately measures differential pressure and converts it into an output signal of 4~20mA DC.
Fuji transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
It's small volume, light weight, good environment adaptability, and applicable to all fields.
If using the hand held communicator(sold separately), it can be set and display via remote operation, without affecting the DC 4~20mA output signal of transmitter.
Fuji FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
Fuji FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
2：Fuji FKC Transmitter Features
a. High accuracy
Differential pressure (flow) transmitter can be carried out with high accuracy measurement in the range of 0.1～20000kPa.
Standard accuracy: ± 0.065%
High accuracy(optional)：± 0.05%
There's no need to linear calibration when carrying out zero elevation or suppression.
b. Excellent environmental adaptaboility
The advanced floating cell protects sensor from temperature,static pressure and overpressure effect, and controls the total measurement error of the filed to the minimun.
The advanced floating cell protects sensor from temperature,static pressure and overpressure effect, and controls the total measurement error of the filed to the minimun.
c. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
· All range meet the requirements of explosion-proof.
· 5-digit digital indiactor
· Stainless steel AMP case
·Built-in RFI filter and lightning arrester
· Various anti-corrosive materials
· Built-in local configurator with 3 push buttons
d.The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3:Product Specification
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Output signal: (1)FKC: DC4~20mA+HART protocol
(2)FDC: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply:
| General | DC10.5 ～ 45V |
| Intrinsic safety | DC10.5 ～ 26V |
| With arrestor | DC10.5 ～ 32V |
4: Parameter table
| Diaphragm Materials: |
 |
| Accuracy ranting: |
 |
| Output signal/ Power supply: |
DC4-20mA/DC10.5~45V(Non-Explosion) |
| Promote/inhibit: |
-100%~+100%URL |
| Containment structure: | JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P |
| Explosion-approvals: |
NEPSI, FM, ATEX, IECEx, CSA, TIIS |
| Ambient temperature: |
Sensor unit: -40~350˚C / Electronics: -40~85˚C |
| Process connection: |
Rc1/4,¼”-18NPT (oval flanges on request) |
5：Process temperature, Lower range limit: Refer to Below Table
| Fill fluid |
13th digit Code |
Process (Note) Temperature |
Lower range limit |
| Silicone oil | Y, G, N | -40～+120°C | 2.7kPa abs |
| Fluorinated oil | W, A, D | -20～+80°C | Atmospheric pressure |
| Silicone oil | R | -15～+120°C | 2.7kPa abs |
6： CE Approved

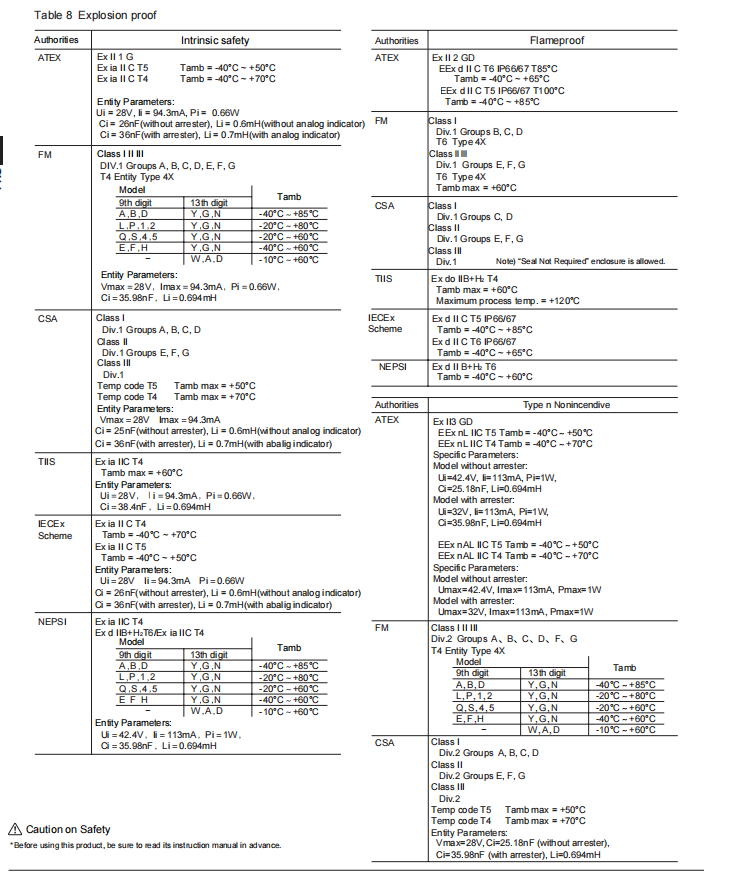

7：Approved Explosion -proof
8：Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code:D、H、P、S), please select the items of display (digit, scale,unit , etc).
6. Please select the tag plate according to need.(up to 14digit, consist of lettters and numbers).
