FUJI FKP Direct mounted Pressure transmitter(DC4~20mA+HART protocol)
FUJI FDP Direct mounted Pressure transmitter(FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
Fuji FCX -AIII version FKP/FDP directly installed pressure transmitter, which is designed for the pipeline to be install directly. There are many process connection selection available, accurately measured, online adjustment, and convenient operation.
The FKP/FDP pressure transmitter accurately measures pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
1. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 8.125-50000kPa.
Standard accuracy: ± 0.065%
High accuracy(optional)：± 0.05%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
·Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Output signal: (1)FKP: DC4~20mA+HART protocol
(2)FDP: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply: General DC10.5 ～ 45V
Intrinsic safety DC10.5 ～ 26V
With arrestor DC10.5 ～ 32V
Diaphragm Materials： SUS316L,Hastelloy-C
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply: DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit : -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals: NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : "1/2-14NPT, Rc1/4,
Rc1/2, 1/4-18NPT, M20×1.5"
FUJI FDP Direct mounted Pressure transmitter(FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
1.Product Introduce
Fuji FCX -AIII version FKP/FDP directly installed pressure transmitter, which is designed for the pipeline to be install directly. There are many process connection selection available, accurately measured, online adjustment, and convenient operation.
The FKP/FDP pressure transmitter accurately measures pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
2:Products Features
1. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 8.125-50000kPa.
Standard accuracy: ± 0.065%
High accuracy(optional)：± 0.05%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
·Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3: Product Specification:
Measured fluid: Liquid,Gas,or vapour

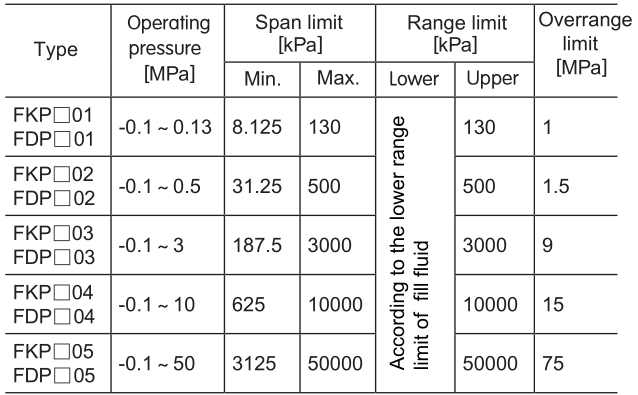

Range, operating pressure, and overrange limit:
Output signal: (1)FKP: DC4~20mA+HART protocol
(2)FDP: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply: General DC10.5 ～ 45V
Intrinsic safety DC10.5 ～ 26V
With arrestor DC10.5 ～ 32V
4: Product Parameter
Diaphragm Materials： SUS316L,Hastelloy-C
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply: DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit : -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals: NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : "1/2-14NPT, Rc1/4,
Rc1/2, 1/4-18NPT, M20×1.5"
5: CE Approved

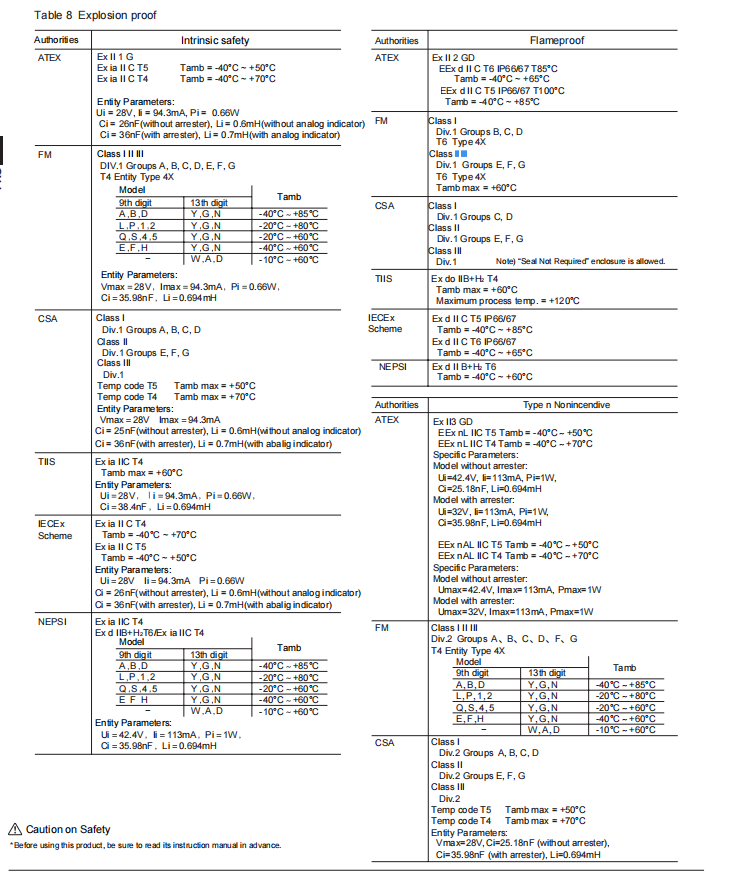

6: Products Explosion -proof
