FUJI FKG pressure transmitter(DC4~20mA+HART protocol)
FUJI FDG pressure transmitter(FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
FUJI FDG pressure transmitter(FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
1.Product Introduce
Fuji FCX -AIII version FKG/FDG pressure transmitter accurately measures pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
1. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 0.32-50000kPa.
Standard accuracy: ± 0.065%
High accuracy(optional)：± 0.05%/± 0.025%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
·Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
2:Products Features
1. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 0.32-50000kPa.
Standard accuracy: ± 0.065%
High accuracy(optional)：± 0.05%/± 0.025%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
·Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3 Products Specification:
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
| Output signal: (1)FKG: DC4~20mA+HART protocol | ||
| (2)FDG: FOUNDA TION Fieldbus protocol or PROFIBUS-PA | ||
| Power Supply: General :DC10.5 ～ 45V | ||
| Intrinsic safety: DC10.5 ～ 26V | ||
| With arrestor:DC10.5 ～ 32V | ||
| 4: Parameter table | ||
| Diaphragm Materials：SUS316L,Tantallum, monel,Hastelloy-C | ||
| Accuracy ranting（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065% | ||
| Output signal/ Power supply:DC4-20mA/DC10.5~45V(Non-Explosion) | ||
| Promote/inhibit: -100%~+100%URL | ||
| Containment structure：JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P | ||
| Explosion-approvals:NEPSI, FM, ATEX, IECEx, CSA, TIIS | ||
| Ambient temperature：Sensor unit: -40~350˚C / Electronics: -40~85˚C | ||
| Process connection :1/2-14NPT,Rc1/4,RC1/2,¼”-18NPT,M20 X 1.5 (oval flanges on request) | ||

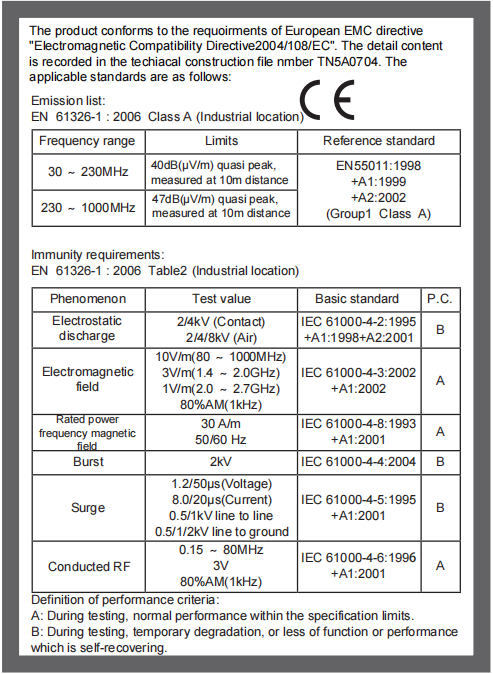

5：CE Approved

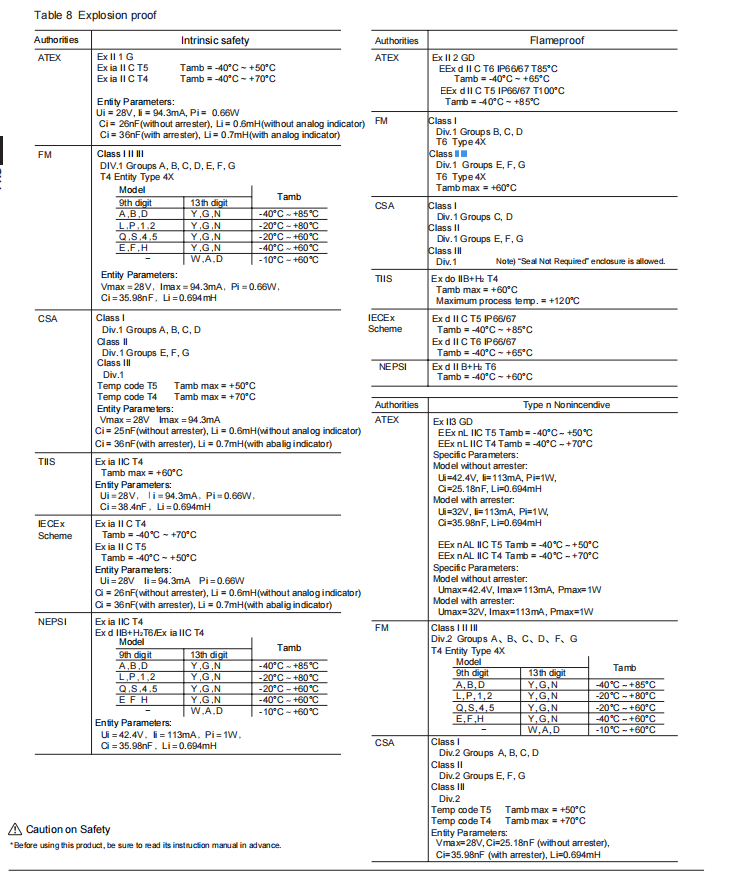

6：Products Explosion Proof
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code: D,H,P,S), please select the items of display (digit, scale, unit , etc).
6. Please select the tag plate according to need.(up to 14 digit, consist of lettters and numbers).
