FUJI FKH Absolute pressure transmitter-Design For Direct Mount (DC4~20mA+HART protocol
FUJI FDH Absolute pressure transmitter-Design For Direct Mount (FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
1. High accuracy
Absolute Pressure transmitter can be carried out with high accuracy measurement in the range of 13-50000kPa.
Standard accuracy: ± 0.1%
High accuracy(optional)：± 0.065%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
FUJI FDH Absolute pressure transmitter-Design For Direct Mount (FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
1.Product Introduce
Fuji FCX -AIII version FKH/FDH directly installed Absolute pressure transmitter, which is designed for the pipeline to be install directly. There are many process connection selection available, accurately measured, online adjustment, and convenient operation.
The FKH/FDH Absolute pressure transmitter accurately measures Absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
2:Products Features
1. High accuracy
Absolute Pressure transmitter can be carried out with high accuracy measurement in the range of 13-50000kPa.
Standard accuracy: ± 0.1%
High accuracy(optional)：± 0.065%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3 Products Specification:
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
| Output signal: (1)FKH: DC4~20mA+HART protocol | |
| (2)FDH: FOUNDA TION Fieldbus protocol or PROFIBUS-PA | |
| Power Supply: General DC10.5 ～ 45V | |
| Intrinsic safety DC10.5 ～ 26V | |
| With arrestor DC10.5 ～ 32V | |
| 4: Parameter table | |
| Diaphragm Materials：SUS316L,Hastelloy-C | |
| Accuracy ranting(For spans greater than1/10 of URL±0.1% or ±0.2%,high accuracy Optional)±0.065% | |
| Output signal/ Power supply:DC4-20mA/DC10.5~45V(Non-Explosion) | |
| Promote/inhibit:-100%~+100%URL | |
| Containment structure：JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P | |
| Explosion-approvals:NEPSI, FM, ATEX, IECEx, CSA, TIIS | |
| Ambient temperature：Sensor unit: -40~350˚C/ Electronics: -40~85˚ C | |
| Process connection : 1/2-14NPT,Rc1/4,RC1/2,¼”-18NPT,M20 X 1.5 (oval flanges on request) |
5： CE Approved

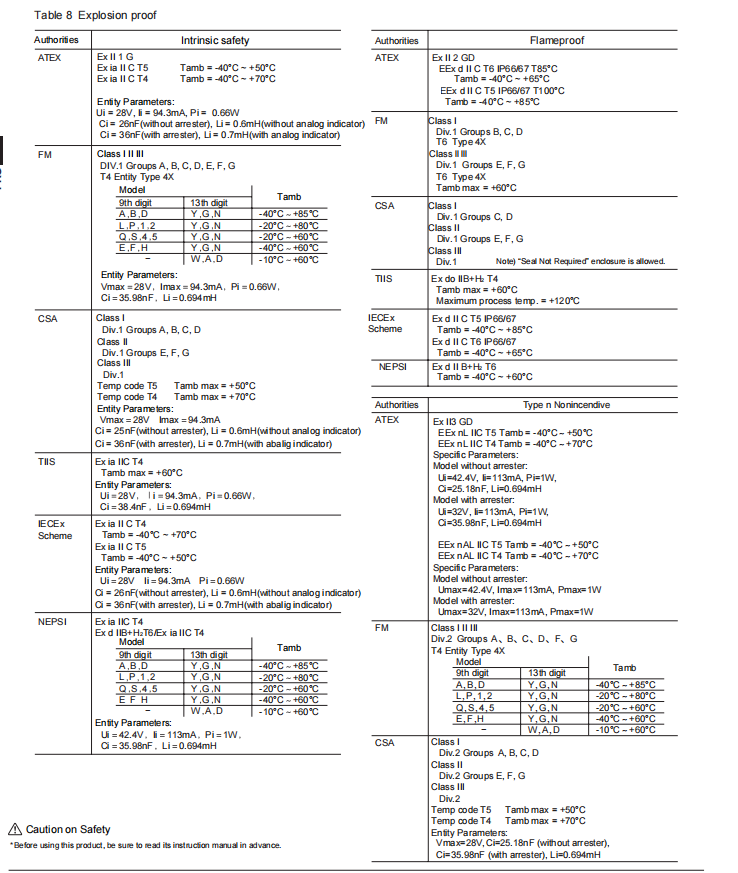

6：Products Explosion-Proof
