FUJI FKA Absolute Pressure Transmitter（DC4~20mA+HART protocol）
FUJI FDA Absolute Pressure Transmitter（ FOUNDA TION Fieldbus protocol or PROFIBUS-PA）
1. High accuracy
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Output signal: (1)FKA: DC4~20mA+HART protocol
(2)FDA: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
FUJI FDA Absolute Pressure Transmitter（ FOUNDA TION Fieldbus protocol or PROFIBUS-PA）
1.Product Introduce
Fuji FCX -AIII version FKA/FDA Absolute pressure transmitter can achieve absolute pressure measurement in equipment such as gas removal system, distillation tower, evaporator and crystal device, and allows pressure under 10MPa. A absolute stress transmitter on one side of the Δ room is accepted to be measured by the absolute pressure signal, and the other side is closed into a high vacuum benchmarking room, and then converted to 4 to 20mA DC signal output.
The FKA/FDA Absolute pressure transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
2: Products Features:
1. High accuracy
Absolute Pressure transmitter can be carried out with high accuracy measurement in the range of 1.6-50000kPa.
Standard accuracy: ± 0.1%
High accuracy(optional)：± 0.065%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
Stainless steel AMP case
Built-in RFI filter and lightning arrester
Various anti-corrosive materials
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3: Products Specification:
Measured fluid: Liquid,Gas,or vapour

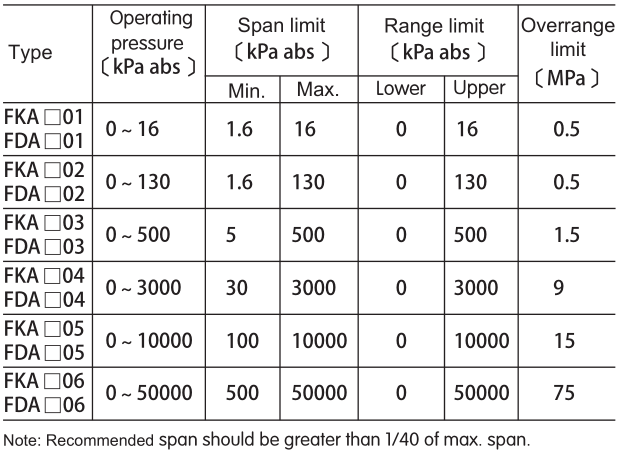

Range, operating pressure, and overrange limit:
Output signal: (1)FKA: DC4~20mA+HART protocol
(2)FDA: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
4: Parameter table
| Diaphragm Materials： | SUS316L,Hastelloy-C,Monel,Tantalum | ||
| Accuracy ranting（ For spans greater than1/10 of URL | ±0.1% ,high accuracy（Optional） ±0.065% | ||
| Output signal/ Power supply |
General : DC10.5~45V Intrinsic safety :DC10.5～26V With arrestor:DC10.5～32V |
||
| Promote/inhibit | -100%~+100%URL | ||
| Containment structure： | JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P | ||
| Explosion-approvals | NEPSI, FM, ATEX, IECEx, CSA, TIIS | ||
| Process connection : | Rc1/4, ¼”-18NPT | ||
| Ambient temperature： | Sensor unit: -40~350˚C / Electronics: -40~85˚C | ||

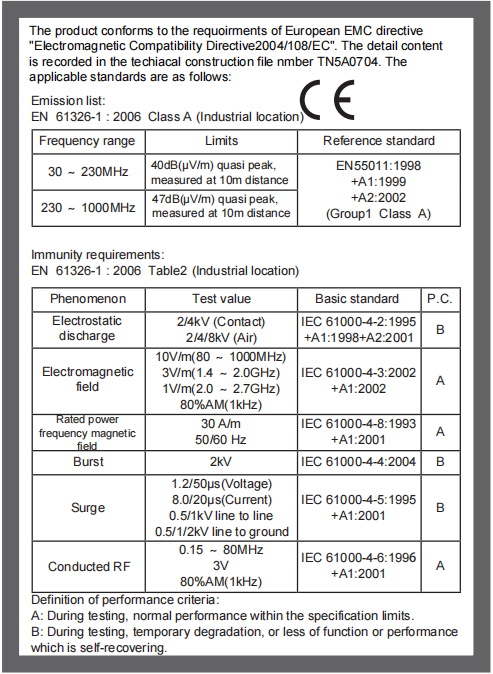

5:CE Approved

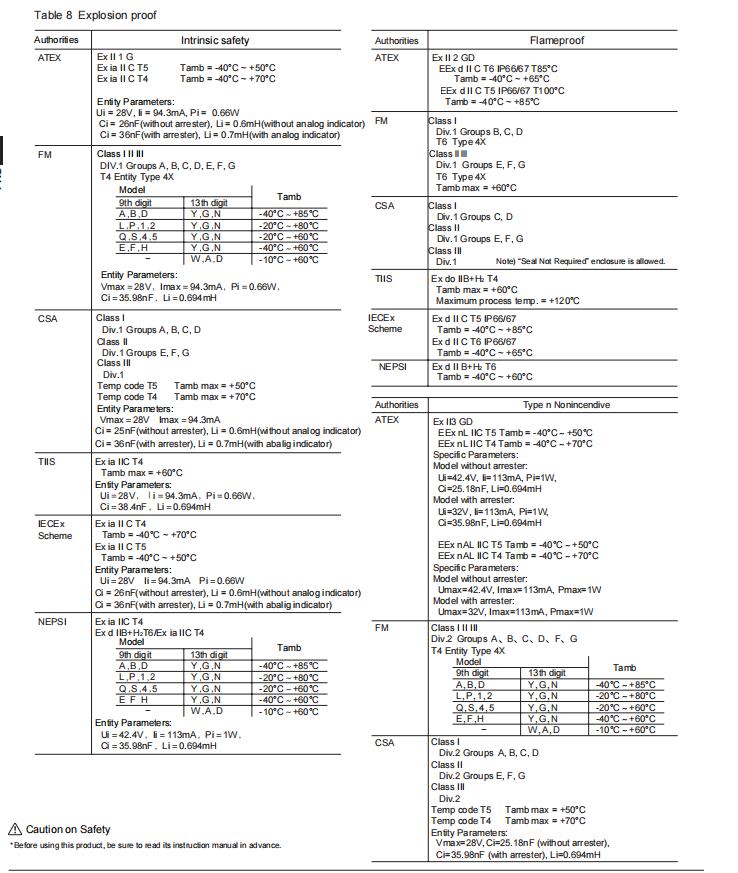

6: Products Explosion-Proof
