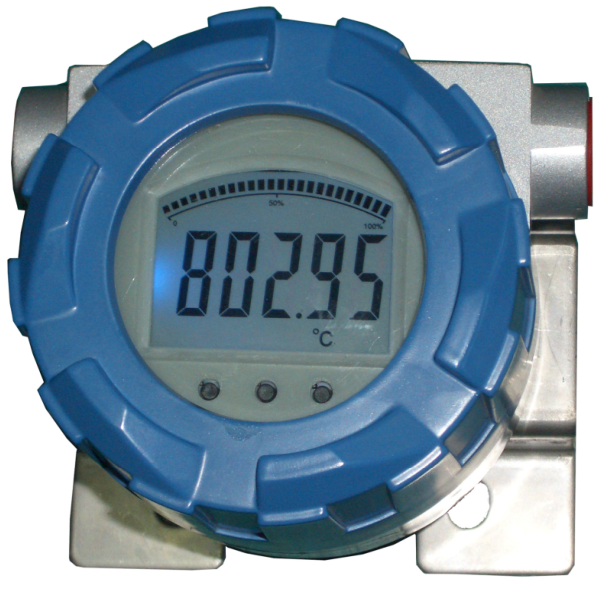

High precision LRC field indicator
This product is an indicator installed in the field, it is series in the loop, the use of 4~20mA micro current drive in the loop, does not affect the work of other instruments in the loop. 2-wire digital display table with 5-bit display without power supply.
This product is an indicator installed in the field, it is series in the loop, the use of 4~20mA micro current drive in the loop, does not affect the work of other instruments in the loop. 2-wire digital display table with 5-bit display without power supply.
The three buttons on the panel can be used to simply calibrate, linearize and other Settings, can be set: unit, range, decimal point, the corresponding measurement value can be directly displayed, with backlight, conducive to users to observe the relevant parameters.
Product Specification:
Output :DC4 ～20mA
Product performance：
Standard Accuracy：±0.01 mA
Temperature coefficient：less than ±0.02%/℃
LCD Display：
Display：Big screen five-digit blue LCD
Display scope:-9999 ～9999
Product Specification:
Output :DC4 ～20mA
Product performance：
Standard Accuracy：±0.01 mA
Temperature coefficient：less than ±0.02%/℃
LCD Display：
Display：Big screen five-digit blue LCD
Display scope:-9999 ～9999
Offset range: -9999 to 9999
Decimal point position specified: 10-1 ~ 10-3 or no decimal point
Polarity display: When the calculation result is negative, "-" is automatically displayed.
Sampling period: 2.5 times/second
Unit display: Select through panel Settings.
Product specification:
Product specification:
Connecting square: screw terminal connection
Case material: Aluminum alloy
Working mode: double integral mode
Calibration setting mode: key programming mode
Protection function: prevent key operation or misoperation
Operating temperature range: -40 ~ +85℃
Humidity range: 0 ~ 95%RH (no condensation)
Dimensions: refer to the outline dimensions drawing
Weight: About 1kg
Explosion-proof certification：
Explosion-proof certification：
Explosion proof grade: NEPSI Explosion proof: Ex ia Ⅱ C T5
NEPSI flameproof: Ex dⅡ C T5
Order Guide：
1 2 3 4 5 6 7 8 9
Order Guide：
1 2 3 4 5 6 7 8 9
| Code | Connect | L | R | C | 2 | - | S | |||||||
|
4 |
Indicator Function | |||||||||||||
| Field Indicator | D | |||||||||||||
| Conduit interface | ||||||||||||||
|
5 |
G 1/2 | S | ||||||||||||
| 1/2-14NPT | T | |||||||||||||
| M20 X 1.5 | W | |||||||||||||
|
7 |
Display scale | |||||||||||||
| 0～ 100% linear | L | |||||||||||||
| User actual calibration | U | |||||||||||||
| 0 ～100% square root | S | |||||||||||||
|
8 |
Explosion-proof structure | |||||||||||||
| General type (non-explosion-proof) | A | |||||||||||||
| NEPSI Flameproof type | F | |||||||||||||
| NEPSI Intrinsic safety type | S | |||||||||||||
|
9 |
Mounting rack | |||||||||||||
| Stainless steel | S | |||||||||||||
