FUJI FTK Water Level Transmitter
1.Product introduce：
FTK immersion water level meter is used to measure water levels of building water, sewage, well water, rivers, seawater, etc.
Its working principle is to detect the water head pressure through the underwater detector
, then convert to a current signal, and transfer it to the signal Receive device.
2：Product Characteristic
1. ± 0.2%high accuracy
2. Using the well -reputation silicon micrococcling sensor and microprocessor, it has achieved more performance.
2. Equipped with a solid durable lightning mock
The detector and converter are built -in lightning arrester, which improves lightning protection.
3. Remote adjustment can be achieved
Use a handheld communicator for remote adjustment.
3：Product Specification
Functional specification
Measuring range: water level of building water, sewage, well water, rivers, seawater, etc.
Measuring length：0～100m
Output:DC4～20mA
Power Supply:DC 24V(10.5～32V)
Wiring Mode:Dual line
Allowed the load resistance:0～600Ω (DC 24V)
Media Temperature：-20～ +60℃
4：Structural material
Detector material:Sensor Diaphragm：SUS316L,Housing：SUS316
Seawater Option use Hastelloy diaphragm and housing
Cable:PVC or PE
Housing Structural：
Detector:submersible type,sewage water model complete with Sludge protective cover
Converter:JIS C 0920 Splash proof type
Installation method :
Detector Hang up and immerse in the water, or set it on the bottom of the water
Converter: 2B pipe or Wall installation
lightning arrester： Detector and Converter all built in lightning arrester
lightning performance：Detector 10kA，Converter 2500A(8/20μs)

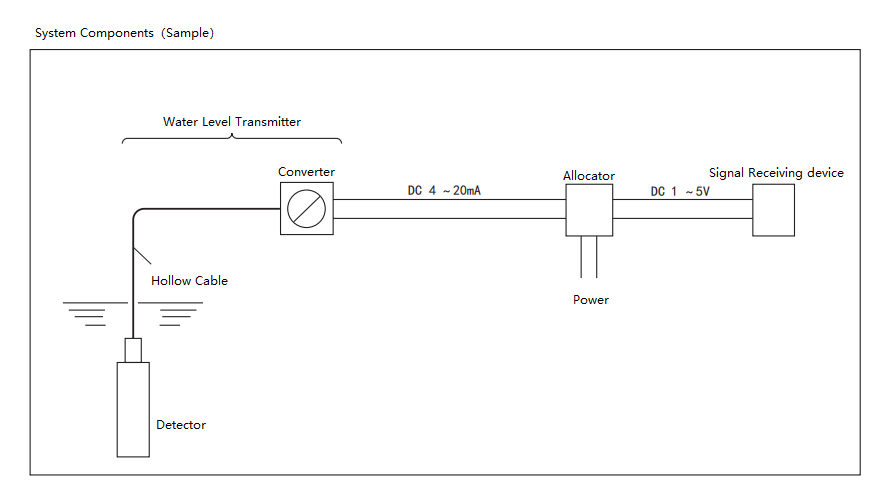

5：Product Working reference drawing

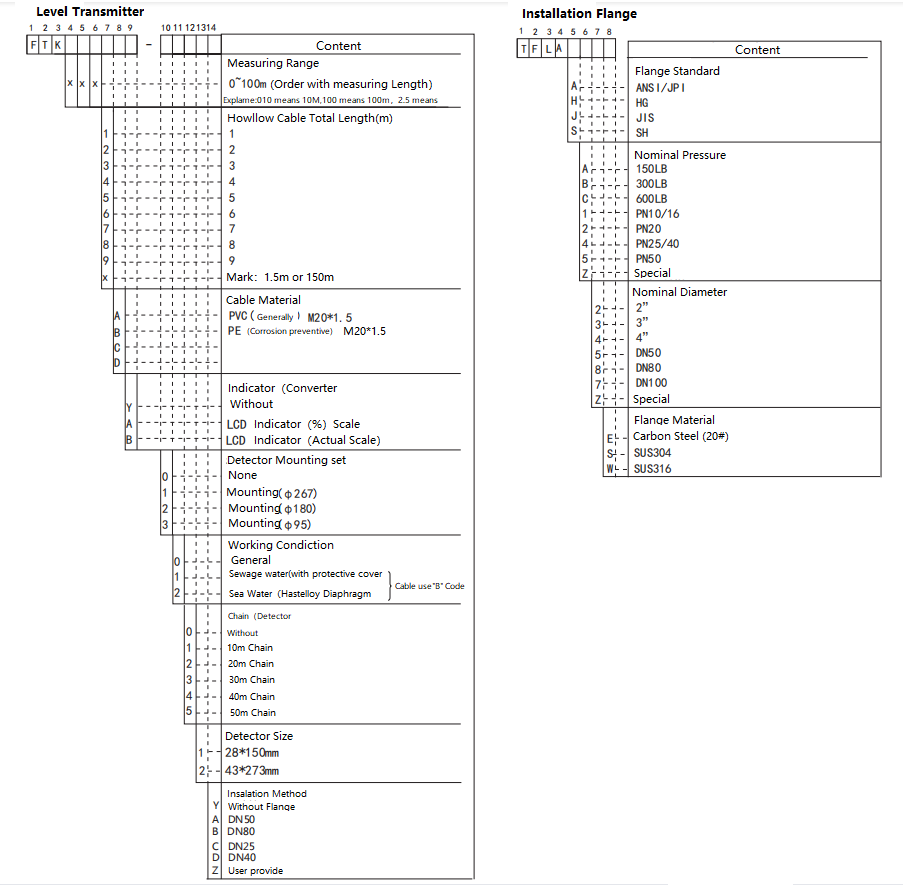

6： Order Guide：

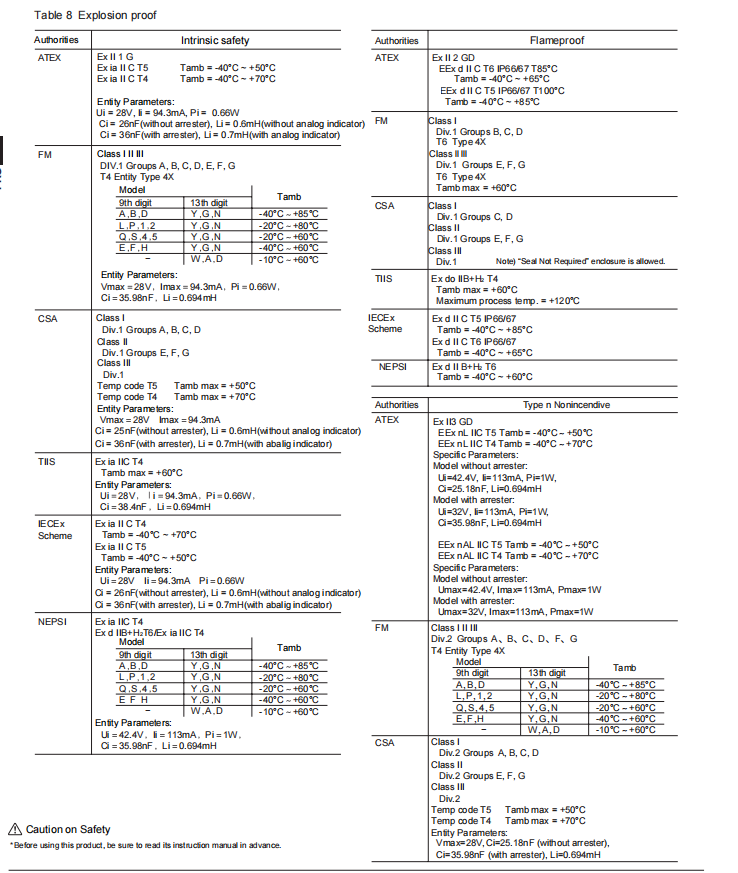

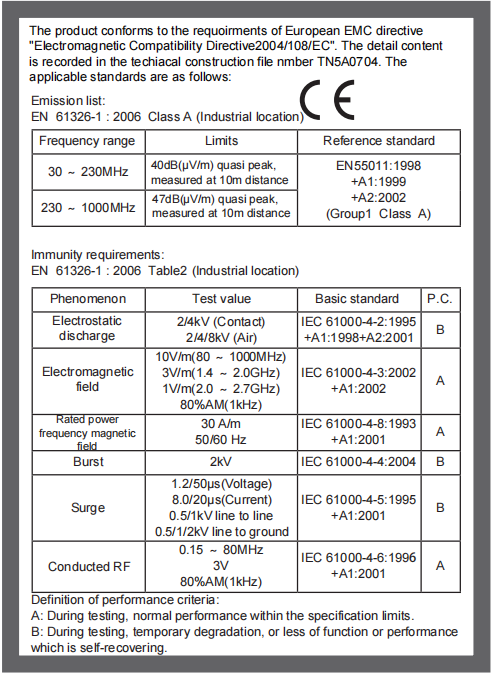

7: Certificate of products
