FUJI FKM Remote seal type absolute pressure transmitter (4~20mA DC superposed digital signal)
FUJI FDM Fieldbus type absolute pressure transmitter(Digital signal based on F.F and Profifibus)
The Fuji FCX -AIII version FKM/FDM diaphragm Remoted Seal Type Absolute pressure transmitter is formed by installing welded sealing isolation membrane structures. Its welding sealing isolation film device has a variety of different processes connection structures, especially suitable for high temperature, high viscosity, crystalline medium and pressure measurement that is susceptible to blocking occasions
The transmitter accurately measures absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Output signal: 4~20mA DC superposed digital signal
Digital signal based on F.F and Profibus TM
Power supply:10.5V~45V DC(terminal)
Diaphragm Materials： SUS316L,Tantallum, monel,Hastelloy-C,316L SS Gold-plated, Zirconium,Titanium
316L SS Gold-plated,Gold & ceramic coating
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply :DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit : -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals: NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating
FUJI FDM Fieldbus type absolute pressure transmitter(Digital signal based on F.F and Profifibus)
1.Product Introduce
The Fuji FCX -AIII version FKM/FDM diaphragm Remoted Seal Type Absolute pressure transmitter is formed by installing welded sealing isolation membrane structures. Its welding sealing isolation film device has a variety of different processes connection structures, especially suitable for high temperature, high viscosity, crystalline medium and pressure measurement that is susceptible to blocking occasions
The transmitter accurately measures absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
2.Products Specification:
Measured fluid: Liquid,Gas,or vapour

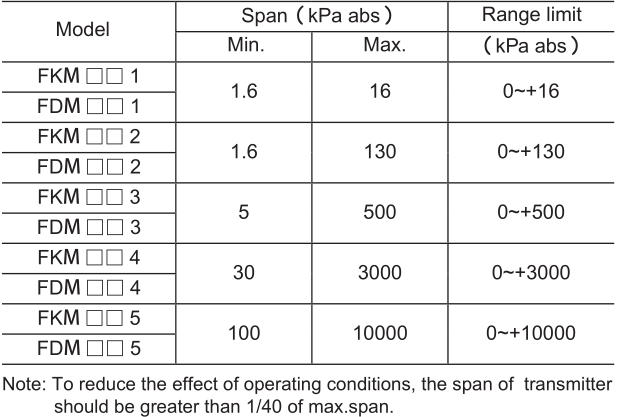

Range, operating pressure, and overrange limit:
Output signal: 4~20mA DC superposed digital signal
Digital signal based on F.F and Profibus TM
Power supply:10.5V~45V DC(terminal)
3: Parameter table
Diaphragm Materials： SUS316L,Tantallum, monel,Hastelloy-C,316L SS Gold-plated, Zirconium,Titanium
316L SS Gold-plated,Gold & ceramic coating
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply :DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit : -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals: NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating

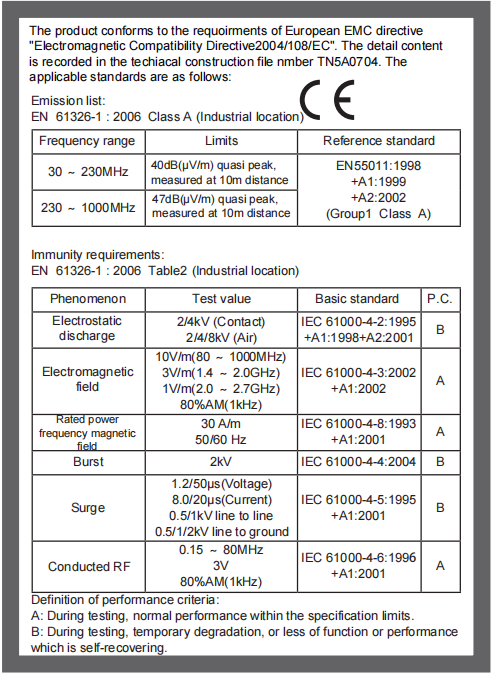

4: CE Approved

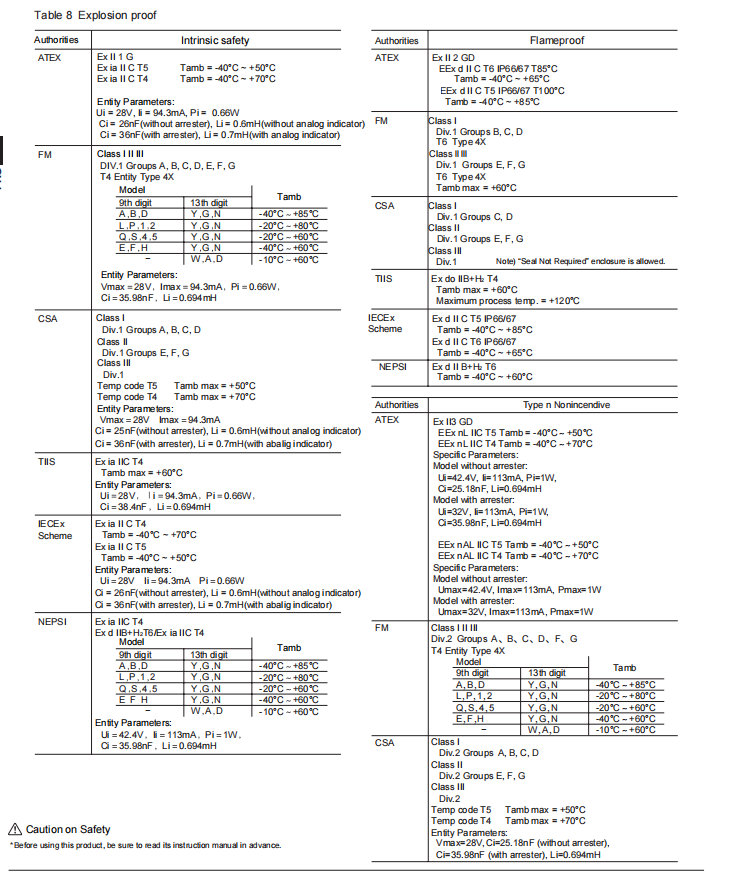

5： Products Explosion-Proof
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code: D,H,P,S), please select the items of display (digit, scale, unit , etc).
6. Please select the tag plate according to need.(up to 14 digit, consist of lettters and numbers).
