FUJI FKP Remote seal type Pressure Transmitter（smart，4～20mA DC＋Fuji/Hart digit signal.）
FUJI FKH Remote seal type Absolute Pressure Transmitter（smart，4～20mA DC＋Fuji/Hart digit signal.）
The FCX -AIII remote seal type Pressure & absolute pressure transmitter accurately measures Pressure & absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with state-of-the-art microprocessor technology to provide exceptional performance and functionality.
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Diaphragm Materials： SUS316L,Tantallum, monel,Hastelloy-C,316L SS Gold-plated, Zirconium,Titanium
316L SS Gold-plated,Gold & ceramic coating
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply :DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit : -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals :NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating
FUJI FKH Remote seal type Absolute Pressure Transmitter（smart，4～20mA DC＋Fuji/Hart digit signal.）
1.Product Introduce
The FCX -AIII remote seal type Pressure & absolute pressure transmitter accurately measures Pressure & absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with state-of-the-art microprocessor technology to provide exceptional performance and functionality.
FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
This pressure transmitter is formed by installing welding density seal isolation membrane structure. Its welding sealing isolation film device has a variety of different processes connection structures, which is especially suitable for high temperature, high viscosity, crystalline media and pressure measurement that is susceptible to blocking occasions. It is also suitable for pressure measurement in hygiene and medicine.
This pressure transmitter is formed by installing welding density seal isolation membrane structure. Its welding sealing isolation film device has a variety of different processes connection structures, which is especially suitable for high temperature, high viscosity, crystalline media and pressure measurement that is susceptible to blocking occasions. It is also suitable for pressure measurement in hygiene and medicine.
2.Product Specification:
Measured fluid: Liquid,Gas,or vapour

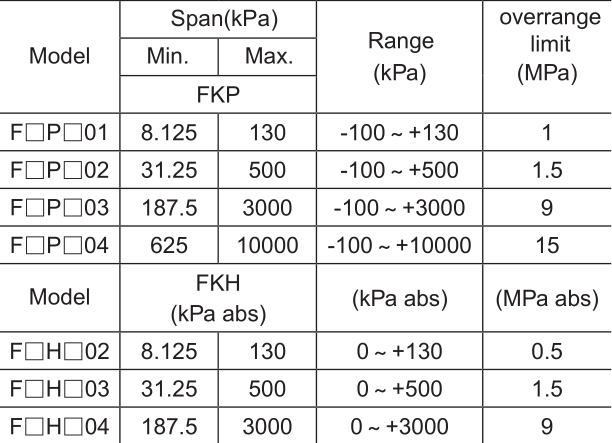

Range, operating pressure, and overrange limit:
3: Parameter table
Diaphragm Materials： SUS316L,Tantallum, monel,Hastelloy-C,316L SS Gold-plated, Zirconium,Titanium
316L SS Gold-plated,Gold & ceramic coating
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply :DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit : -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals :NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating

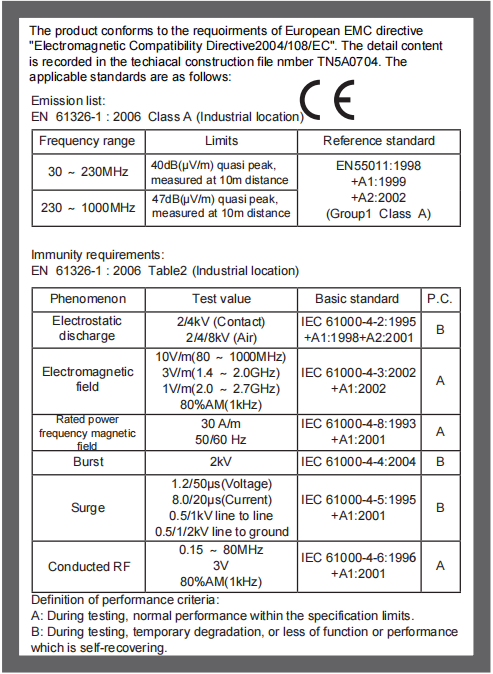

4：CE Approved

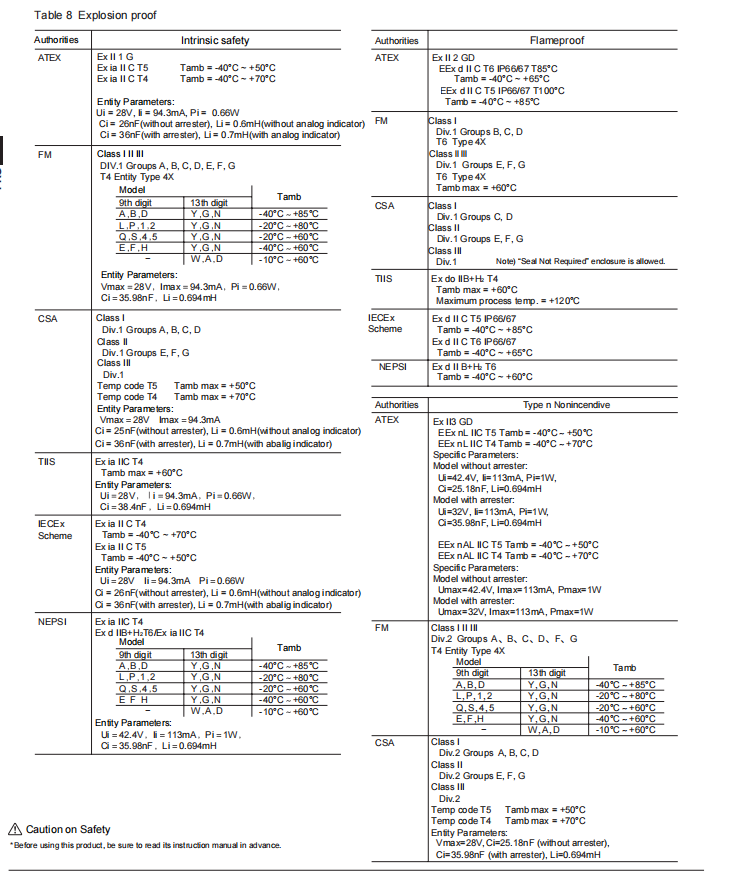

5; Products Explosion-Proof
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code: D,H,P,S), please select the items of display (digit, scale, unit , etc).
6. Please select the tag plate according to need.(up to 14 digit, consist of lettters and numbers).
