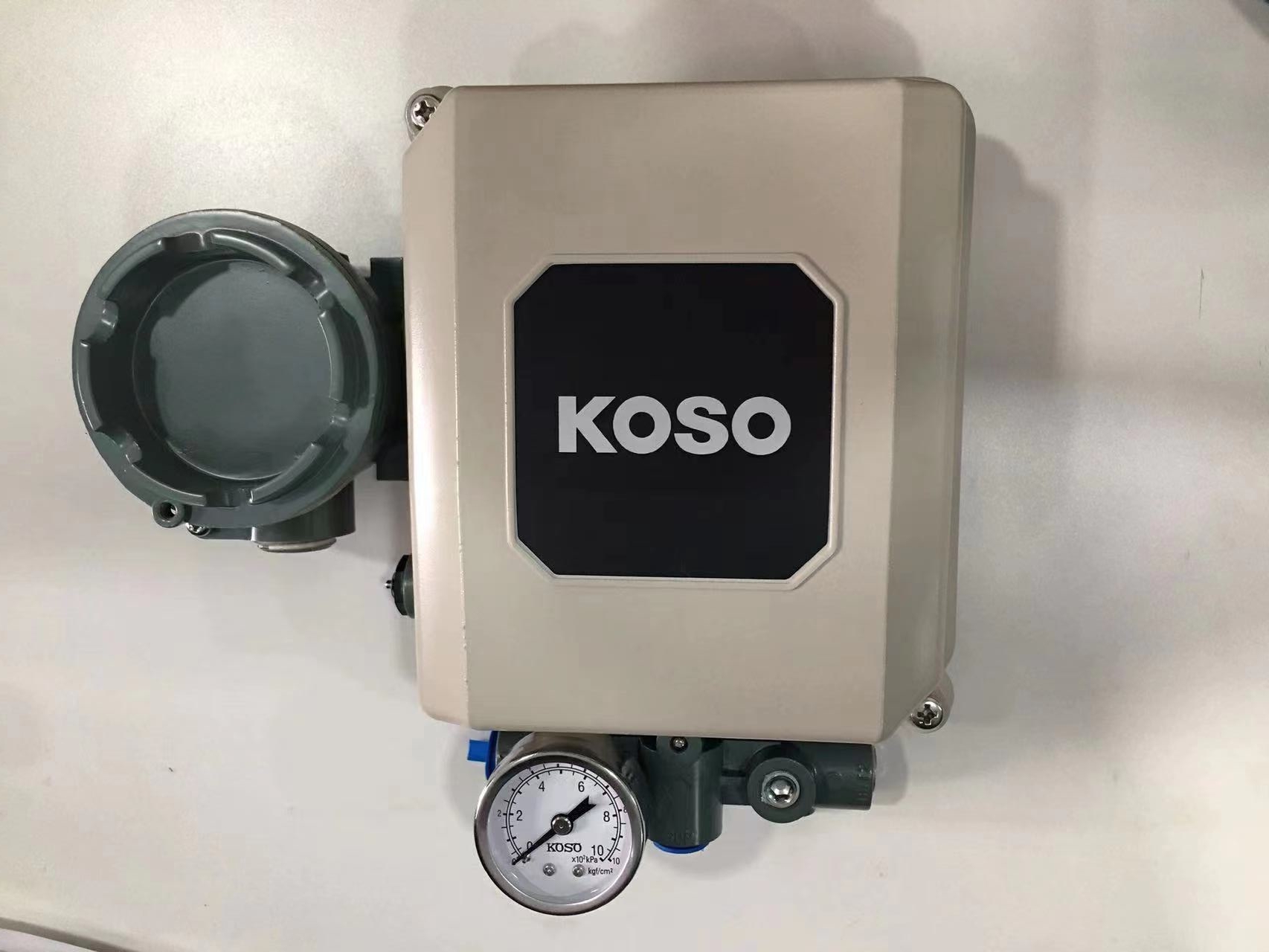

KOSO Valve positioner EPB801/EPB804/EPB811
Koso valve positioner EPB801 original special sale original imported authentic product general distribution special promotion, koso valve positioner EPB801 original special sale original imported authentic product promotion supplier, koso valve positioner EPB801 original special sale new authentic original imported spot wholesale price, contact email: sales6@xatzd.com
KOSO's detailed Description
Japan KOSO Positioner, KOSO Positioner, KOSO valve Positioner, KOSO control valve, etc.
KOSO Positioner mainly includes: single action actuator, double action actuator, small single action actuator
KOSO single action actuator EPA801, EPA804, EPA805, EPA811, EPA814, EPA821, EPA824,
KOSO double action actuator EPC801, EPC805, EPC814, EPC824,
KOSO small single action actuator EPB801, EPB811, EPB821.
KOSO Positioner EP800 series details:
KOSO direct Stroke series:
KOSO single action: EPA801; EPA811; EPA821; EPB801; EPB811; EPB821;
KOSO dual action: EPC801; EPC811; EPC821
KOSO Angle stroke series:
KOSO single action: EPA804; EPA814; EPA824
KOSO dual action: EPC804; EPC814; EPC824
EPA821 valve positioner; Koso Positioner
. Technical parameters and sexual performance
. Input signal: Standard: 4-20mADC
.. Division: 4-12mADC 12-20mADC
10-50mADC (EP-15.17. EP-25.27.)
. Input impedance: 250 Euros (4-20mADC) 100 Euros (10-50mADC)
. Rated stroke: straight stroke: 12--100mm Angle: 0-90 degrees
. Air source pressure: 0.14-0.16MPa 0.17-0.50MPa
. Gas consumption: 5NL/ min (when the air supply pressure is 0.4MPa)
. Return difference: less than 1% of the full stroke
Dead zone: less than 0.4% of full travel
. Output characteristics: linear (can be changed to equal percentage characteristics)
. Ambient temperature: flameproof type -20-+60oC ordinary type -40-+80oC
. Relative humidity: not more than 90%
. Explosion-proof type: flameproof type, ordinary type
. Air source interface: ZG1/4
. Shell material: aluminum alloy
. Weight: 3.5 kg
Our company long - term supply of Koso valve positioner， details please contact our company.
EP800 series: EPA801, EPB801, EPC801, EPA811, EPB811, EPC811, EPA821, EPB821, EPC821, EPA824.
Reponse: better than KOSO, Services: faster than KOSO, Quality: KOSO original quality.
