China Fuji transmitter compared with France Fuji transmitter
Time2023-02-07 15:34 linkS：
Fuji transmitter currently has two versions, French and Chinese fuji transmitter, today we will compare the difference between the two factories of Fuji transmitter.
1:Fuji transmitter Accuracy
France Fuji Transmitter With a high accuracy,standard Accuracy is ±0,065% accuracy for all elevated or suppressed,0.04% accuracy is available in option.
China fuji With a high accuracy,standard Accuracy is ±0,065% accuracy for all elevated or suppressed,0.05% accuracy is available in option.
2: Fuji transmitter Type:
France fuji transmitter Smart, 4-20mA + HART/Fuji Electric communication protocols.
China Fuji transmitter Smart, 4-20mA + HART/Fuji Electric communication protocols.

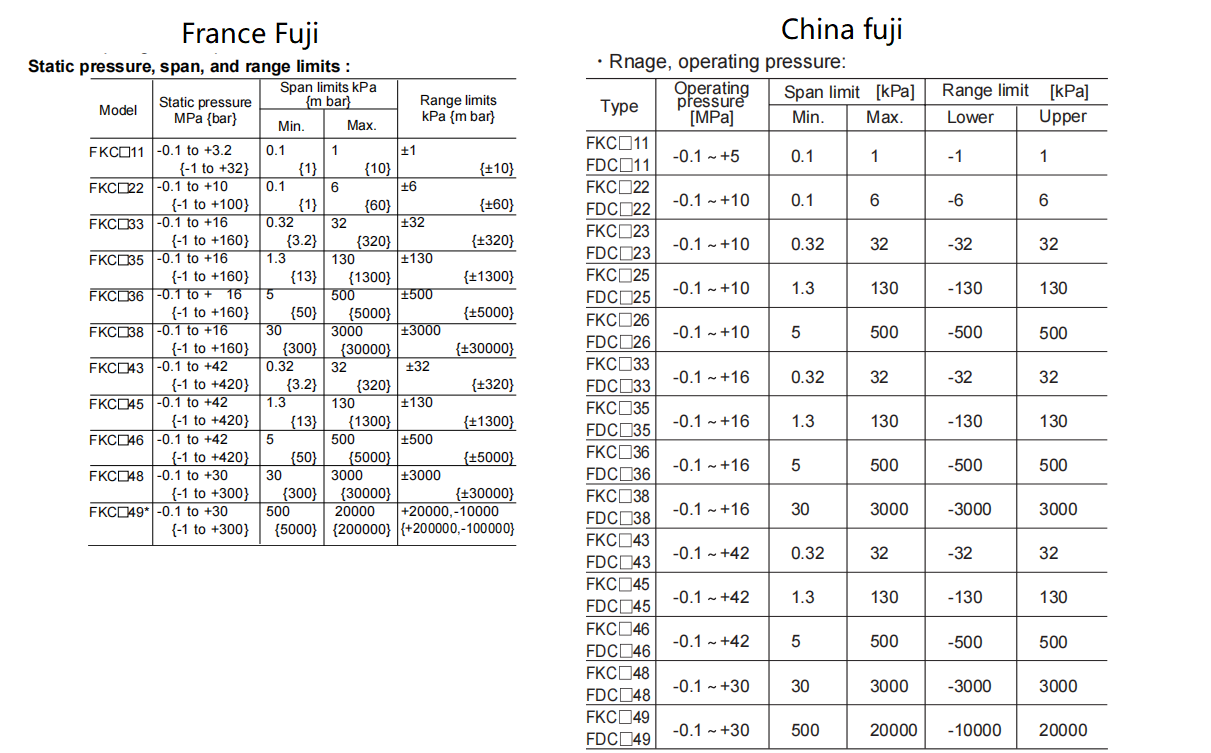

3: Fuji transmitter static pressure,span,and range limits:
4:Fuji transmitter Output signal
France fuji transmitter Output signal:4-20 mA (linear or square root) with digital signal super
imposed on the analog signal Power supply:
10.5 to 45 V DC at transmitter terminals.
10.5 to 32 V DC with the optional arrester.
Refer to hazardous location table for specific limitations.
China fuji transmitter output signal:(1)FKC: DC4~20mA+HART protocol (2)FDC: FOUNDA TION Fieldbus
protocol or PROFIBUS-PA Power supply:
DC10.5-45 for general,DC10.5-26 for intrinsic safety ,DC10.5-32V for arrestor

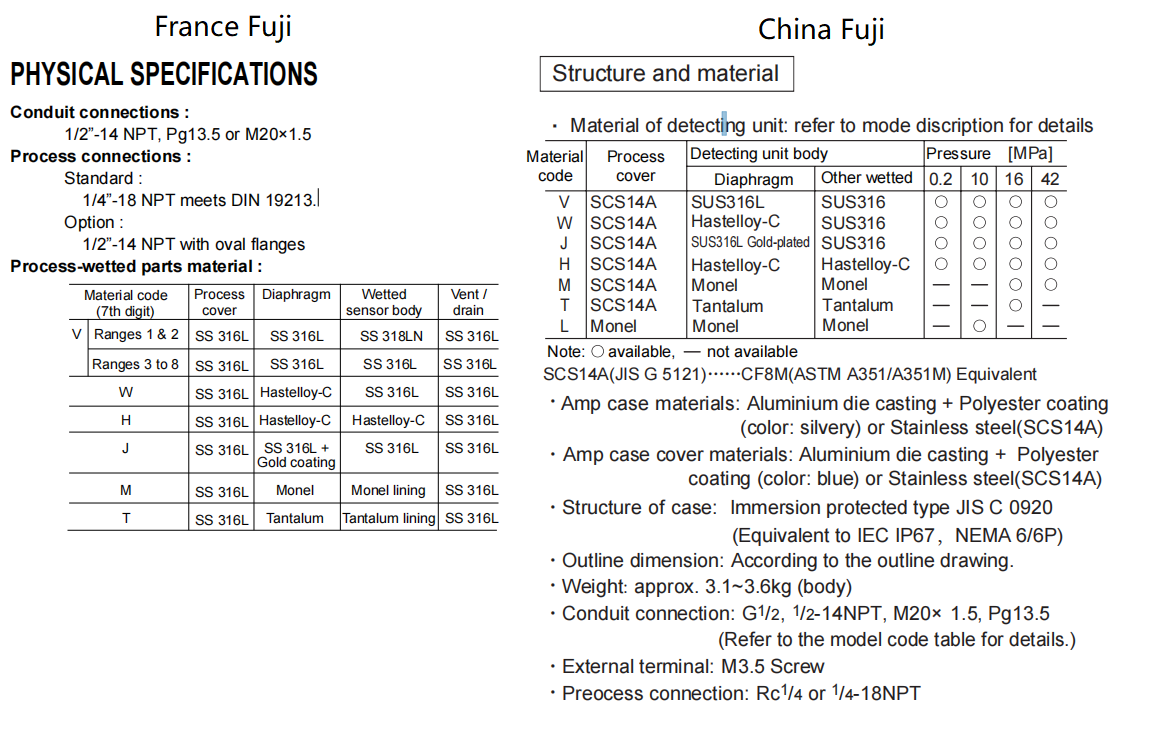

5:Fuji transmitter physical Specifications:

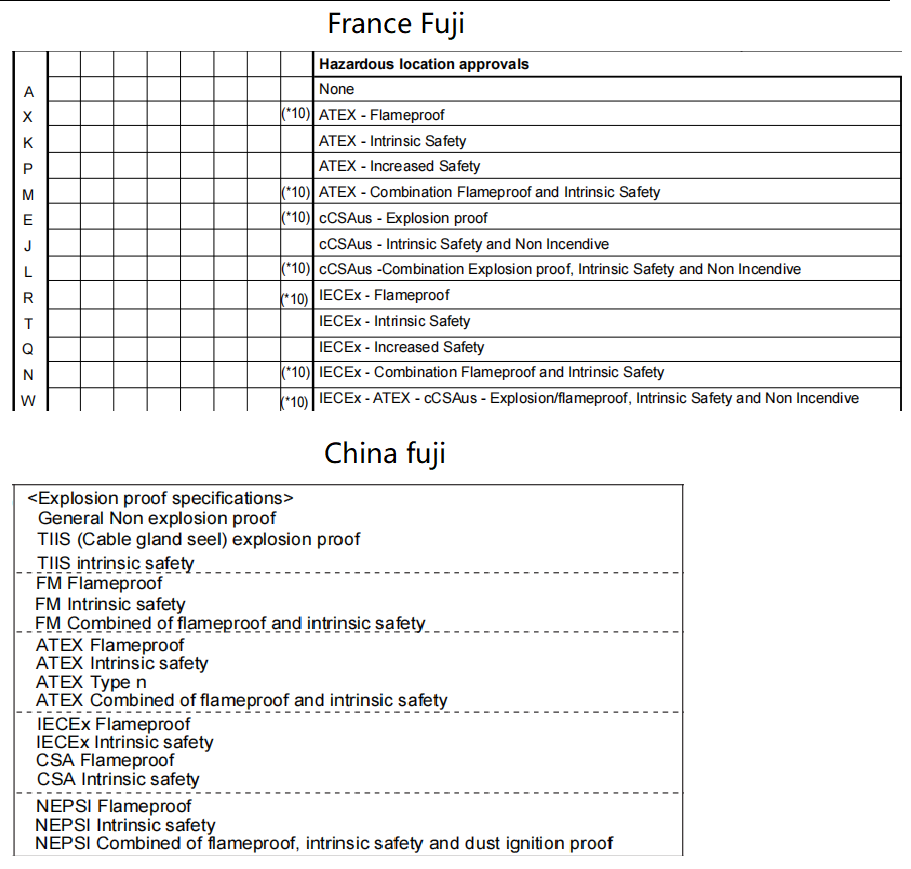

6: Fuji transmitter Hazardous location approvals
The above information is simple compared,others details about fuji transmitter,pls contact us by mail :sales6@xatzd.com
