Committed to miniaturization, high precision, high performance and long-term stability, the FCX-AIII series transmitter has a wide measurement range and a variety of diaphragms.

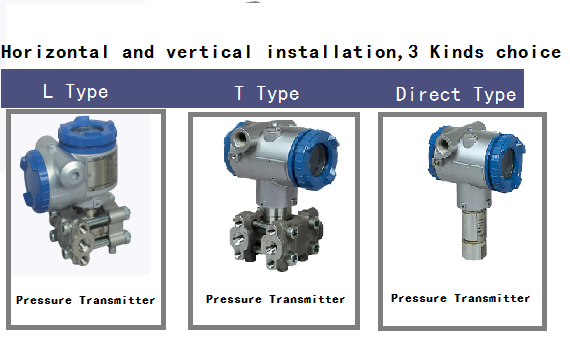

A: It is easier to install horizontally and vertically
B: Anti-hydrogen penetration adopts gold and ceramic double coating structure
C: Excellent long-term stability +0.1% for 10 years by improving the probe
D: Anti-erosion type can use titanium metal, tantalum metal, Hastelloy, Monel, titanium, zirconium
E: After independent technical treatment, the high vacuum and high temperature type can not only maintain the temperature under 0.027ABS, but also expand to 200 degrees, and maintain stability.
|
Gold Ceramic Processing |
Suitable for desulfurization and H production |
|
zirconium |
Suitable for Hydrochloric acid, caustic soda |
|
titanium |
Suitable for salt compound, sulfide |
|
Hastelloy |
Suitable for acid，Alkaline |
|
Monel alloy |
Suitable for Alkaline |
|
Tantalum |
Suitable for hydrochloric acid，sulfuric acid，Nitric acid |
Fuji pressure transmitter, Fuji differential pressure transmitter, Fuji flow transmitter, Fuji liquid level transmitter classification:
1. Fuji absolute pressure transmitter FKA type
An absolute pressure transmitter with a measuring range of 1.6 to 3000kPa abs.
Second, Fuji differential pressure / flow transmitter FKC type
A differential pressure/flow transmitter with a measurement range of 0.1 to 3000kPa.
3. Fuji pressure transmitter FKG type
A pressure transmitter with a measurement range of 1.3 to 50000kPa.
Fourth, anti-hydrogen penetration Fuji differential pressure transmitter / flow transmitter FKC type
A differential pressure/flow transmitter with a measurement range of 3.2 to 130kPa that is resistant to hydrogen permeation.
5. Anti-hydrogen penetration Fuji pressure transmitter FKG type
It is an anti-hydrogen permeation pressure transmitter with a measurement range of 50 to 10000kPa.
Six, Fuji capillary type Fuji differential pressure transmitter FKD type
Capillary type differential pressure transmitter with measuring range of 0.32 to 500kPa.
Seven, Fuji capillary type Fuji differential pressure transmitter FKD type
Capillary type differential pressure transmitter with measuring range of 0.32 to 500kPa.
Eight, Fuji capillary type Fuji pressure transmitter FKB type
Capillary pressure transmitter with measuring range of 1.3 to 50000kPa.
Nine, Fuji small diameter capillary type Fuji differential pressure transmitter FKX type
Small-diameter capillary differential pressure transmitter with a measurement range of 3 to 500kPa.
10. Fuji Small Diameter Capillary Type Fuji Pressure Transmitter FKW Type
Small diameter capillary pressure transmitter with a measurement range of 50 to 10000kPa.
Eleven, Fuji liquid level transmitter FKE type
Flange type liquid level transmitter with measuring range of 0.32 ~ 500kPa.
12. Fuji Small Diameter Liquid Level Transmitter FKY Type
Small diameter flange type liquid level transmitter with measuring range of 3 to 500kPa.
13. Fuji handheld communicator FXW type
Handheld communicator with built-in battery for two-way communication with the transmitter.
14. Direct Mount Fuji Absolute Pressure Transmitter FKH
A direct-mounted absolute pressure transmitter with a measuring range from 8.125 to 3000kpa.
15. Direct Mount Fuji Pressure Transmitter FKP
A direct-mounted pressure transmitter with a measuring range from 8.125 to 10000kpa.
16. Fuji pressure equalizing valve, Fuji oval flange FFN, Fuji FFP type
Three-way valve and oval flange for use with differential pressure transmitters.
Fuji pressure transmitter, Fuji differential pressure transmitter, Fuji flow transmitter, Fuji liquid level transmitter
