Fuji ZKM type in-line zirconia oxygen analyzer

Time2022-03-04 14:23 linkS：

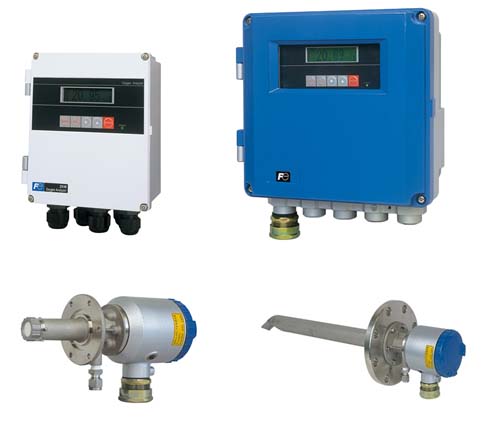

Fuji ZFK8, ZKM type in-line zirconia oxygen analyzer

--------A high-speed response oxygen analyzer that does not require sampling equipment. It is most suitable for combustion management of boilers and various industrial furnaces.

Features:

Zirconia sensor can be replaced and maintenance is simple.

The fast response speed of 4~7 seconds can be used for combustion control.

Two types of enclosures IP66 and IP67 are provided for different usage environments.

It has the function of aging diagnosis and regeneration of sensor electrodes, which prolongs the service life and improves the reliability.

The setting operation can be performed easily without opening the case. (When using ZKM1 case)

Various diagnostics and protection functions are designed for safety considerations.

Main Specifications:

Comprehensive Specifications
Item	Specification
Measurement object	Oxygen in non-flammable gases
measurement method	In-line Zirconia Type
Measuring range	０～２・・・・・５０ｖｏｌ％Ｏ2 (Can be set arbitrarily within the range)
Repeatability	±０．５％ＦＳ
linear	±２％ＦＳ
Zero point and full scale drift	±１％ＦＳ／Week
Response time	４～７S（Via the calibration gas inlet）
Analog signal output	ＤＣ４～２０ｍＡ or ＤＣ０～１Ｖ，insulation
voltage	ＡＣ１００Ｖ～１２０Ｖor ＡＣ２００Ｖ～２４０Ｖ

Detector Specifications
Item	Specification
measure gas temperature	－１０～＋６００℃（duct type）
measure gas temperature	－１０～＋１５００℃（ejector）
measure gas pressure	－３～＋３ｋＰａ
filter	Alumina, Quartz filter paper
structure	ＩＰ６６ (except front-end filter)
Weight	Estimate １．６ｋｇ（except duct）

Converter Specifications
Item	Spefication
Measured concentration value display	Digital 4-digit display with backlight
Contact output	Relay contact 6 points
Contact input	No-voltage contact 3 points
Communication function	RS-232C（Standard）or RS-485（Option）
Others function	Thermocouple disconnection detection, keyboard lock
Output hold function	During calibration, during purging, the output is maintained
Optional function	Combustion efficiency display, purging, automatic correction, switching cock
structure	ＩＰ６６ or ＩＰ６７（as specified）

Duct Specification
Item	Specification
Type	General Type, Corrosion Resistant Type, Purge Nozzle Type, High Dust Type
Length	３００ｍｍ～１０００ｍｍ（as specified）
mounting flange	ＪＩＳ５Ｋ　６５Ａ（High dust type is ８０Ａ）

There are also many others zirconia oxygen analyzer avaliable, if you need ,pls send us your request by below informations:
