DVC6200 Features and Specifications
FISHER Positioner--DVC6200 Intelligent Valve Positioner
DVC6200 intelligent valve electrical positioner is an upgraded product of the original DVC6000 series; it replaces the original DVC6010 positioner; DVC6020 valve positioner; DVC6030 intelligent valve positioner; DVC6000 series positioner is completely discontinued; DVC6200 is fully promoted;
One: Fisher DVC6200 Electrical Valve Positioner Features:

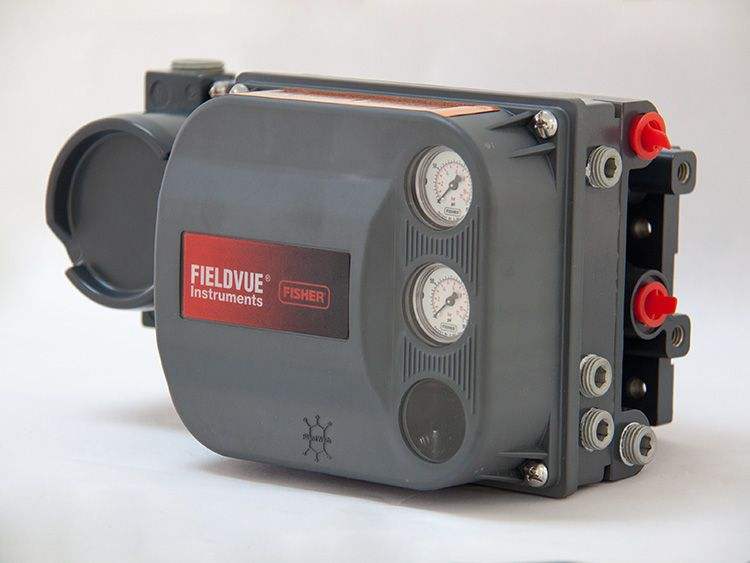

FisherDVC6200 series digital valve controller. Added meter with connectionless, contactless feedback technology;
It is specifically designed for applications where there is severe vibration, severe corrosion or material entrainment. This connectionless, contactless feedback technology improves reliability by eliminating wear at the connections.
FISHER DVC6200 Positioner; no linkage, non-contact feedback technology has no wearable sliding parts, it uses magnets and Hall effect sensors to detect valve position. Since there is no mechanical connection, problems such as wear, loosening, corrosion and vibration are eliminated, and it can adapt to various harsh working conditions and achieve long-lasting cyclic action.
Two applications of FISHER DVC6200 valve positioner:
1. Integral 2-way and 3-way valve mounted on Fisher / GX
2. Mounted on Fisher quarter-turn control valve actuator
3. Mounted on Fisher Linear Control Valve Actuator
4. Installed on other manufacturers' rotary and sliding rod actuators; complies with IEC 60534-6-1, IEC 60534-6-2, VDI/VDE 3845 and NAMUR installation standards;
Three: The signal of FISHER DVC6200 intelligent valve positioner:
Analog input signal: 4-20 mA DC, standard; split-range control can also provide analog control
# For Hart communication, the minimum voltage is 11VDC.
# Reverse polarity protection: reverse loop current will not cause damage to the instrument
Four: FisherDVC6200 electrical valve positioner output signal:
1. For the pneumatic signal required by the actuator, the maximum can reach 95% of the air source pressure; the minimum range: 0.4bar
(6 psig) Maximum Range: 9.5bar (140 psig);
2. Mode of action: ■Double-acting, ■Single-acting positive-acting, ■and single-acting reverse-acting
3. Whether with position feedback (4-20MAw signal output);
Five: FISHER DVC6200 valve positioner operating temperature:
1.-40°C to 85°C; 2.-52°C to 85°C (option);
Six: Diagnostic level of Fisher DVC6200 electrical valve positioner
1. AC Auto-Calibrate
2. HC Hart Communication
3. AD Advanced Diagnostics (Off-line performance diagnosis)
4. PD Performance Diagnostics (On-Line Performance Diagnostics)
Seven: Stem stroke of Fisher DVC6200 electrical valve positioner
1. Straight stroke: minimum 11mm; maximum 606mm
2. Rotation angle: minimum 45 degrees; maximum 90 degrees
Eight: Fisher DVC6200 http://www.fujitransmitter.com/ electrical valve positioner protection grade: IP66;
Nine: Ordering Options:
1. The model of the actuator;
2. How it works:
2.1 Single-acting positive action or single-acting negative action;
It is integrally mounted on GX and GX 3−Way actuators
Or mounted on other quarter-turn and linear-stroke pneumatic actuators
Whether with position feedback (4-20mA output)
2.2 Double acting;
3. The maximum stroke and angle of the actuator;
4. Air source pressure;
5. Diagnostic level of the positioner:
5.1 AC Auto-Calibrate
5.2 HC Hart Communication
5.3 AD Advanced Diagnostics (Off-line performance diagnosis)
5.4 PD Performance Diagnostics (On-Line performance diagnosis);
