Koso Ball Valve
1： Product Introduce：

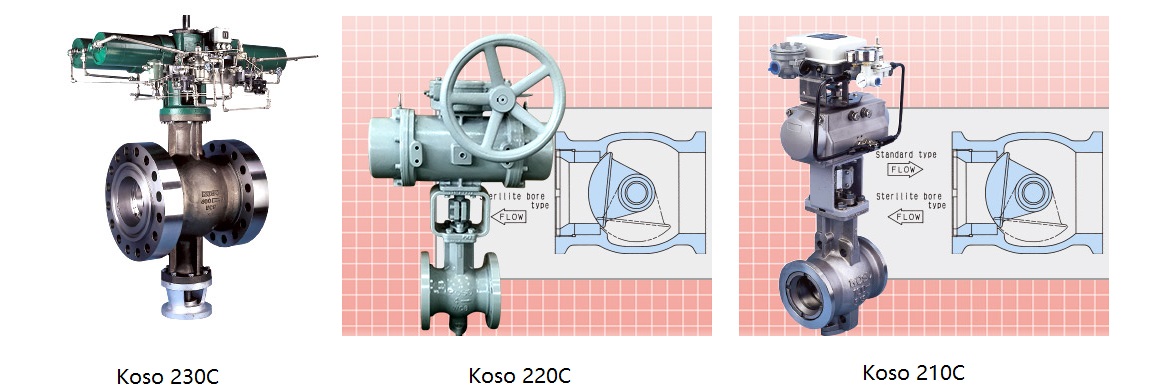

210C:Concentric Segmental Ball Valves（Flow Max C/Wafer）
This series is concentric segmental ball valve for modulating application. V-notch cut at disc makes rangeability larger and creates shearing effect by disc and seal ring. Therefore, suitable to large rangeability service and/or control of fluids with fiber and/or slurry.
220C:Concentric Segmental Ball Valves（Flow Max C/Flanged）
This series is concentric segmental ball valve for modulating application. V-notch cut at disc makes rangeability larger and creates shearing effect by disc and seal ring. Therefore, suitable to large rangeability service and/or control of fluids with fiber and/or slurry.
230C:Concentric Segmental Ball Valves
This series is same as 210C series except that the stem penetrates the body and is supported by double gland packing.The stem's blow out force is set off in this construction making it suitable to heavier services such as high pressure, high temperature service because of heat expansion insulation design stem.
2： Koso 210C & 220C &230C Ball Valve Specification：
1： Product Introduce：
210C:Concentric Segmental Ball Valves（Flow Max C/Wafer）
This series is concentric segmental ball valve for modulating application. V-notch cut at disc makes rangeability larger and creates shearing effect by disc and seal ring. Therefore, suitable to large rangeability service and/or control of fluids with fiber and/or slurry.
220C:Concentric Segmental Ball Valves（Flow Max C/Flanged）
This series is concentric segmental ball valve for modulating application. V-notch cut at disc makes rangeability larger and creates shearing effect by disc and seal ring. Therefore, suitable to large rangeability service and/or control of fluids with fiber and/or slurry.
230C:Concentric Segmental Ball Valves
This series is same as 210C series except that the stem penetrates the body and is supported by double gland packing.The stem's blow out force is set off in this construction making it suitable to heavier services such as high pressure, high temperature service because of heat expansion insulation design stem.
2： Koso 210C & 220C &230C Ball Valve Specification：
| Body type | 210C | 220C | 230C | |
| Body size | 1"(25A) to 12"(300A) | 1"(25A) to 18"(450A) | 6"(150A) to 24"(600A) | |
| Body rating | ANSI Class 150 to 600, JIS 10K to 40K | JIS 10K | ANSI Class 150 to 1500, JIS 20K to63K | |
| Fluid temperature | -45 to +500° | -45 to +500° | -45 to +650° | |
| Connections | Wafer type | Flanged (RF) | Flanged (RF, RTJ) | |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc. | |||
| Disc materials | SCS14A | SCS13A, SCS14A | ||
| Disc treatment | Chrome plated or Stellited | |||
| Seal ring materials | R.TFE, SUS316 | R.TFE, SUS304, 316 | ||
| Rangeability | 100:1 to 500:1 | 100:1 | ||
| Flow characteristics | Approximate Eq% (Inherent Characteristic) | |||
| Leakage | Metal seat |
L Type seat: Rated Cv × 0.001% H Type seat: Rated Cv × 0.25% |
||
| Soft seat | Bubbletight ANSI Class VI | |||
| Actuator combination |
6300RB, 6400RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator 3500RB, 3600RB: Solid State Electronic Actuator 3400RB: Electric Motor Actuator |
|||
