FUJI FKG hydrogen permeation resistant type Pressure transmitter (DC4~20mA+HART protocol)
FUJI FDG hydrogen permeation resistant type Pressure transmitter (FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
1:The world's first double coating structure (patent).
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Output signal: (1)FKG: DC4~20mA+HART protocol
(2)FDG: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply: General DC10.5 ～ 45V
Intrinsic safety DC10.5 ～ 26V
With arrestor DC10.5 ～ 32V
Diaphragm Materials： SUS316L Gold & ceramic plated
Accuracy ranting:（ For spans greater than1/10 of URL ±0.15%
Output signal/ Power supply: DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit: -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals :NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating
FUJI FDG hydrogen permeation resistant type Pressure transmitter (FOUNDA TION Fieldbus protocol or PROFIBUS-PA)
1.Product Introduce
The FCX -AIII Version FKG hydrogen Permeation Resisant Type pressure (flow) transmitter is mainly designed for Refinery plant measuring hydrogen pressure，Permeation of hydrogen into the fill fluid can be suppressed..FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
Fuji FKG hydrogen Permeation Resisant transmitter measures pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
2:Products Features
1:The world's first double coating structure (patent).

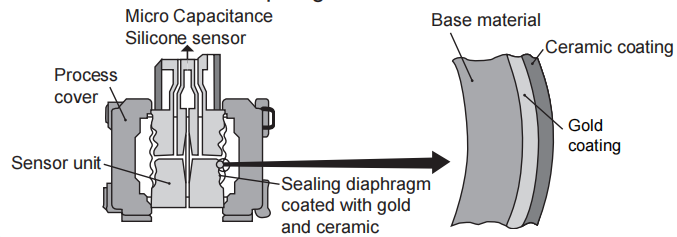

Permeation of hydrogen into the fill fluid can be suppressed by the world's first gold and ceramic coating (double coating) at the surface of seal diaphragm.
2. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 50～10000kPa.
There's no need to linear calibration when carrying out zero elevation or suppression.
3. Excellent environmental adaptaboility
The advanced floating cell protects sensor from temperature and overpressure effect, and controls the total measurement error of the filed to the minimun.
4. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
Stainless steel AMP case
·Built-in RFI filter and lightning arrester
Various anti-corrosive materials
Built-in local configurator with 3 push buttons
5. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3.Products Specification:
Measured fluid: Liquid,Gas,or vapour

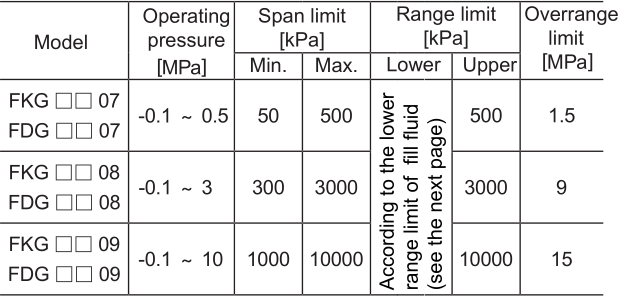

Range, operating pressure, and overrange limit:
Output signal: (1)FKG: DC4~20mA+HART protocol
(2)FDG: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply: General DC10.5 ～ 45V
Intrinsic safety DC10.5 ～ 26V
With arrestor DC10.5 ～ 32V
4: Parameter table
Diaphragm Materials： SUS316L Gold & ceramic plated
Accuracy ranting:（ For spans greater than1/10 of URL ±0.15%
Output signal/ Power supply: DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit: -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals :NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating

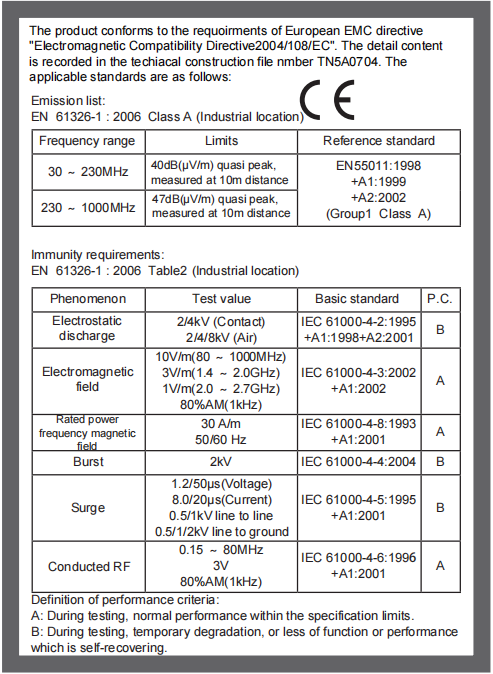

5： CE Approved

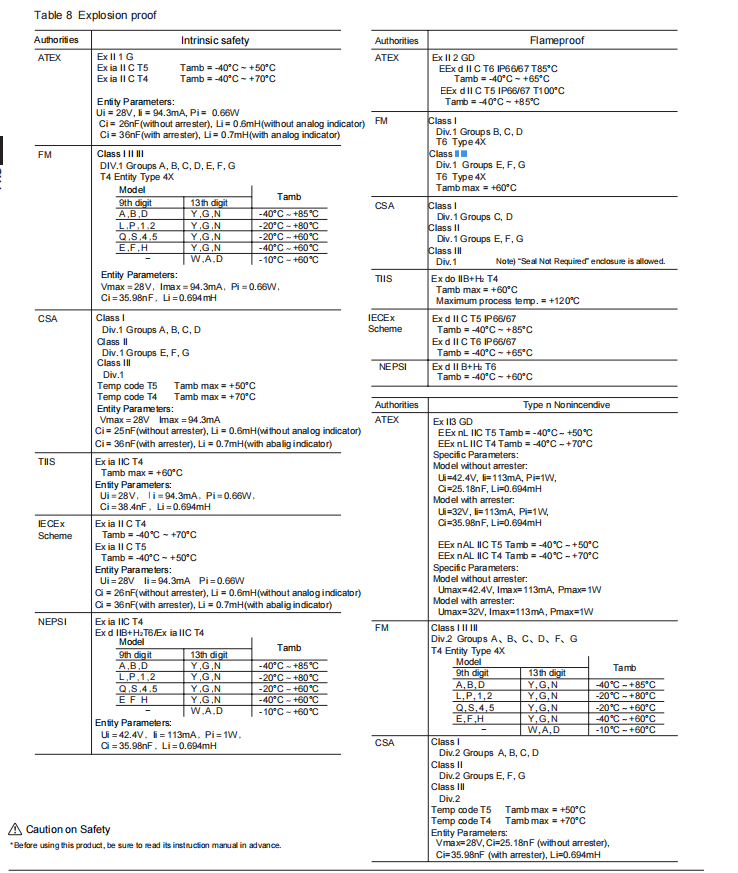

6：Products Explosion-Proof
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code: D,H,P,S), please select the items of display (digit, scale, unit , etc).
6. Please select the tag plate according to need.(up to 14 digit, consist of lettters and numbers).
