FUJI Level Transmitter including 3 models：
FUJI FKE Level Transmitter (DC4-20mA+HART)
FUJI FDE Level Transmitter (FOUNDATION Fieldbus and PROFIBUS)
FUJI FEE Liquid level electronic remote transmitter（DC4-20mA+HART)
The Fuji liquid level transmitter is an extension and development of the Fuji pressure transmitter technology. It is used to measure liquid, gas or steam liquid levels, flow, and pressure, and then transform it into a 4-20madc signal output.
Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
Output signal: (1)FKE: DC4~20mA+HART protocol
(2)FDE: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
(3) FEE: DC4~20mA+HART protocol
Power Supply: General DC10.5 ～ 45V
Intrinsic safety DC10.5 ～ 26V
With arrestor DC10.5 ～ 32V
4: Parameter table
Diaphragm Materials： SUS316L,Tantallum, monel,Hastelloy-C,316L SS Gold-plated, Zirconium,Titanium
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply: DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit: -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals :NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating
FUJI FKE Level Transmitter (DC4-20mA+HART)
FUJI FDE Level Transmitter (FOUNDATION Fieldbus and PROFIBUS)
FUJI FEE Liquid level electronic remote transmitter（DC4-20mA+HART)
1.Product Introduce
The Fuji liquid level transmitter is an extension and development of the Fuji pressure transmitter technology. It is used to measure liquid, gas or steam liquid levels, flow, and pressure, and then transform it into a 4-20madc signal output.
The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and new micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
1. High accuracy
Level transmitter can be carried out with high accuracy measurement in the range of 0.32～3000kPa.
Standard accuracy: ± 0.1%
High accuracy(optional)：± 0.065%
There's no need to linear calibration when carrying out zero elevation or suppression.
2. Excellent environmental adaptaboility
The advanced floating cell protects sensor from temperature and overpressure effect, and controls the total measurement error of the filed to the minimun.
3. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
Stainless steel AMP case
·Built-in RFI filter and lightning arrester
Various anti-corrosive materials
Built-in local configurator with 3 push buttons
4. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
2: Products Features
1. High accuracy
Level transmitter can be carried out with high accuracy measurement in the range of 0.32～3000kPa.
Standard accuracy: ± 0.1%
High accuracy(optional)：± 0.065%
There's no need to linear calibration when carrying out zero elevation or suppression.
2. Excellent environmental adaptaboility
The advanced floating cell protects sensor from temperature and overpressure effect, and controls the total measurement error of the filed to the minimun.
3. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
Stainless steel AMP case
·Built-in RFI filter and lightning arrester
Various anti-corrosive materials
Built-in local configurator with 3 push buttons
4. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3: Products Specification
Measured fluid: Liquid,Gas,or vapour

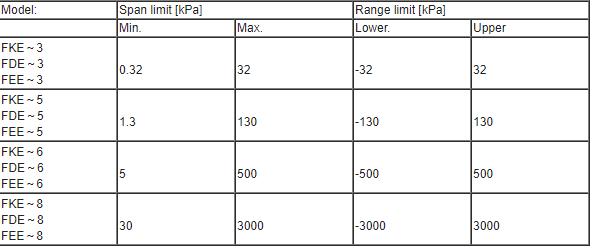

Range, operating pressure, and overrange limit:
Output signal: (1)FKE: DC4~20mA+HART protocol
(2)FDE: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
(3) FEE: DC4~20mA+HART protocol
Power Supply: General DC10.5 ～ 45V
Intrinsic safety DC10.5 ～ 26V
With arrestor DC10.5 ～ 32V
4: Parameter table
Diaphragm Materials： SUS316L,Tantallum, monel,Hastelloy-C,316L SS Gold-plated, Zirconium,Titanium
Accuracy ranting:（ For spans greater than1/10 of URL ±0.1% or ±0.2%,high accuracy（Optional） ±0.065%
Output signal/ Power supply: DC4-20mA/DC10.5~45V(Non-Explosion)
Promote/inhibit: -100%~+100%URL
Containment structure： JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P
Explosion-approvals :NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature： Sensor unit: -40~350˚C / Electronics: -40~85˚C
Process connection : Individual flange rating

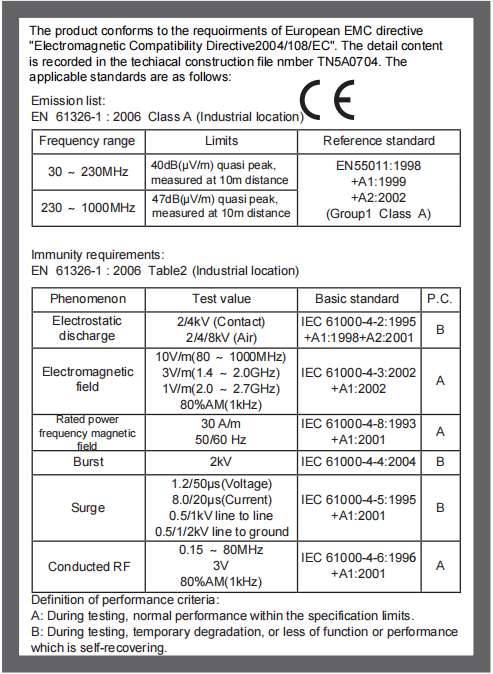

5： CE approved

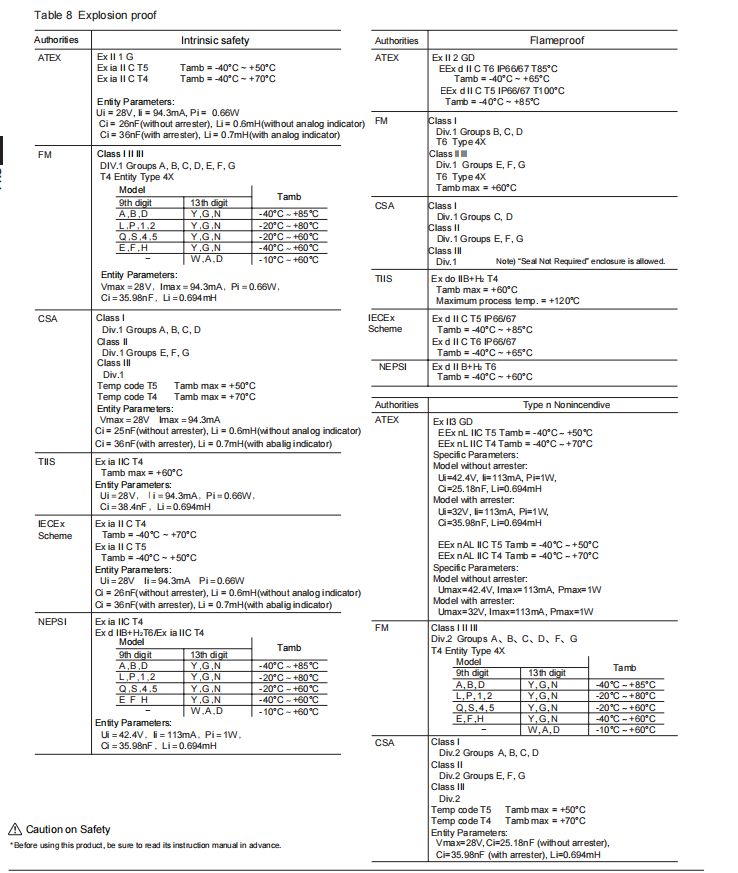

6： Products xplosion -proof
