1.Product Introduce
The FCX -AIII absolute pressure transmitter accurately measures absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
2:Measured fluid: Liquid,Gas,or vapour

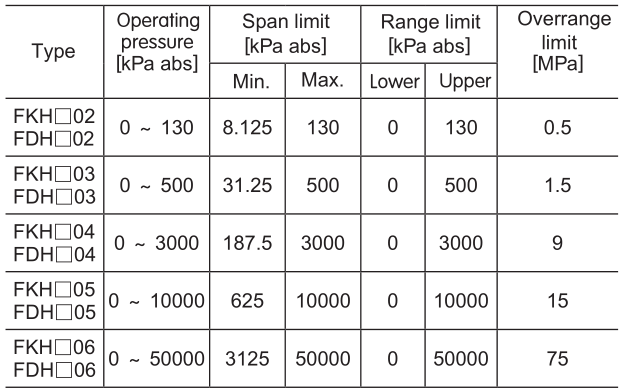

Range, operating pressure, and overrange limit:
The FCX -AIII absolute pressure transmitter accurately measures absolute pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
2:Measured fluid: Liquid,Gas,or vapour
Range, operating pressure, and overrange limit:
| Output signal: (1)FKA: DC4~20mA+HART protocol | |
| (2)FDA: FOUNDA TION Fieldbus protocol or PROFIBUS-PA | |
| Power Supply: General DC10.5 ～ 45V | |
| Intrinsic safety DC10.5 ～ 26V | |
| With arrestor DC10.5 ～ 32V | |
| 3: Parameter table | |
| Diaphragm Materials：SUS316L,Hastelloy-C | |
| Accuracy ranting(For spans greater than1/10 of URL±0.1% or ±0.2%,high accuracy Optional)±0.065% | |
| Output signal/ Power supply:DC4-20mA/DC10.5~45V(Non-Explosion) | |
| Promote/inhibit:-100%~+100%URL | |
| Containment structure：JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P | |
| Explosion-approvals:NEPSI, FM, ATEX, IECEx, CSA, TIIS | |
| Ambient temperature：Sensor unit: -40~350˚C/ Electronics: -40~85˚ C | |
| Process connection : 1/2-14NPT,Rc1/4,RC1/2,¼”-18NPT,M20 X 1.5 (oval flanges on request) |
