FUJI FKP pressure transmitter （Direct Mount Type）
FUJI FDP Pressure Transmitter （Direct Mount Type）
FUJI FKP gauge transmitter（Direct Mount Type）
FUJI FDP gauge transmitter（Direct Mount Type）
1.Product Introduce
Fuji transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
It's small volume, light weight, good environment adaptability, and applicable to all fields.
If using the hand held communicator(sold separately), it can be set and display via remote operation, without affecting the DC 4~20mA output signal of transmitter.
Fuji FCX-AIII series transmitters with safety funtion have obtained the certificate ofSIL certification by TÜV.
2: Fuji FKP Transmitter Features
a. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 8.125～50000kPa.
Standard accuracy: ± 0.1%
Accuracy(50MPa): ± 0.2%
High accuracy(optional)：± 0.05%
b. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
· All range meet the requirements of explosion-proof.
· 5-digit digital indiactor
· Stainless steel AMP case
·Built-in RFI filter and lightning arrester
· Built-in local configurator with 3 push buttons
c. The transmitter can communicate using FUJI, HART,communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3:Measured fluid: Liquid,gas,or vapour
Range , operating pressure, and overrange limit:
Output signal: (1)FKC: DC4~20mA+HART protocol
(2)FDC: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply:
4： Process temperature, Lower range limit: Refer to Figure 1
5： Parameter table
6： CE Certificate
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER)
when the transmitter is fault (Burnout). If unspecified, it is
Notuse.
4. Please select the tag plate according to need.(up to 14
digit, consist of lettters and numbers).
FUJI FDP Pressure Transmitter （Direct Mount Type）
FUJI FKP gauge transmitter（Direct Mount Type）
FUJI FDP gauge transmitter（Direct Mount Type）
1.Product Introduce
Fuji transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
It's small volume, light weight, good environment adaptability, and applicable to all fields.
If using the hand held communicator(sold separately), it can be set and display via remote operation, without affecting the DC 4~20mA output signal of transmitter.
Fuji FCX-AIII series transmitters with safety funtion have obtained the certificate ofSIL certification by TÜV.
2: Fuji FKP Transmitter Features
a. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 8.125～50000kPa.
Standard accuracy: ± 0.1%
Accuracy(50MPa): ± 0.2%
High accuracy(optional)：± 0.05%
b. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
· All range meet the requirements of explosion-proof.
· 5-digit digital indiactor
· Stainless steel AMP case
·Built-in RFI filter and lightning arrester
· Built-in local configurator with 3 push buttons
c. The transmitter can communicate using FUJI, HART,communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3:Measured fluid: Liquid,gas,or vapour

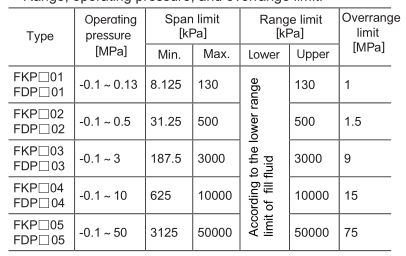

Range , operating pressure, and overrange limit:
Output signal: (1)FKC: DC4~20mA+HART protocol
(2)FDC: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply:
| General | DC10.5 ～ 45V |
| Intrinsic safety | DC10.5 ～ 26V |
| With arrestor | DC10.5 ～ 32V |
4： Process temperature, Lower range limit: Refer to Figure 1
5： Parameter table
| Diaphragm Materials: |
 |
| Accuracy ranting: |
(including linearity, hysteresis, repeatability) For spans greater than 1/10 of URL: ： ± 0.065% or ± 0.04%(21th code：H) For spans below 1/10 of URL: ·Ambient temperature effect: Changed per 28°C in the range of -40°C～+85°C. |
| Output signal/ Power supply: |
DC4-20mA/DC10.5~45V(Non-Explosion) |
| Promote/inhibit: |
-100%~+100%URL |
| Containment structure: | JIS C0920 Immersion type（Equivalent IEC IP67,NEMA6/6P |
| Explosion-approvals: |
NEPSI, FM, ATEX, IECEx, CSA, TIIS |
| Ambient temperature: |
Sensor unit: -40~350˚C / Electronics: -40~85˚C |
| Process connection: |
1 / 2 -14NPT (Refer to the model code table for details.) |

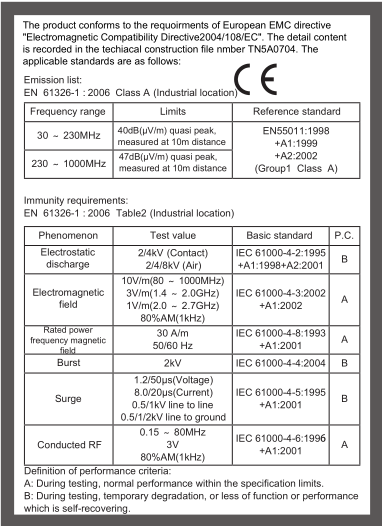

6： CE Certificate
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER)
when the transmitter is fault (Burnout). If unspecified, it is
Notuse.
4. Please select the tag plate according to need.(up to 14
digit, consist of lettters and numbers).
