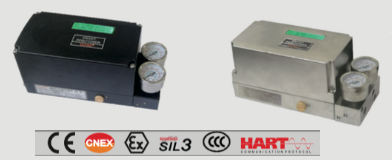

MSP-25 series Smart valve positioner  accurately controls valve stroke，according to inpout signal of 4~20mA being delivered from controller
According the signal command output from the controller or control system and converts it into a pneumatic signal to drive the pneumatic actuator to control the valve opening. Mainly used for valve position control of pneumatic linear or angular stroke valves.



l    Adopt piezoelectric valve electric/pneumatic conversion structure
l    Can be used for pneumatic valves of different specifications.
l    Easy to install and easy to debug.
l    With LCD backlight display and key operation.
l     realize three-break protection function.


Main specification of valve positioner


Model series	MSP-25
Input signal	4~20mADC
Input pressure	0.14~0.7MPa（20~105psi)
Journey	Straight stroke  10~150mm、5~130 mm
	Angular stroke  0~90°
Impedance	450Ω（No HART），500Ω（with HART）
Air supply interface	NPT1/4
Pressure gauge interface	NPT1/8
Power interface	G1/2
Operating temperature	Normal：.-20~80℃，Low：-40~80℃
Linearity	±0.5%F.S.
Hysteresis	±0.5%F.S.
Sensitivity	±0.5%F.S.
Flow	Flow when fully open：130L/min(@6.0bar)
Air consumption	Stablely air consumption：＜0.0006Nm³/h
Output characteristics	Linear, quick opening, equal percentage or custom
Housing Material	Die-cast aluminum or stainless steel (316L)
Protection class	IP66
Explosion-proof grade	ExiaIICT6
Unit Weight:	Aluminum：2.3kg；316L：4.6kg




Order informations：

1： Motion Type
2：Acting Type
3：Explosion Protection
4：Lever type-----Linear or Rotary
5： Conduit Air Connection
6：Communication
7：Feedback type
8： Fail Option
9：Air source, power off signal
10：Option
11： Temperature
12： Housing material


For details model confirm informations，pls feel free  send e-mail to “ Sales6@xatzd.com”
