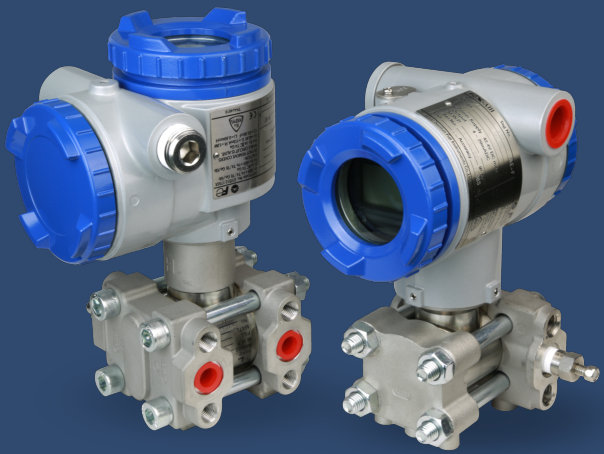

Some stock sales Fuji FKCT35V5-1RCYY-BAY Difference Pressure Transmitter
100% New & Original with competitive price and one year warranty!
The FCX -AIII differential pressure (flow) transmitter accurately
measures differential pressure and converts it into an output signal
of 4~20mA DC.
The transmitter utilizes a unique micromachined capacitance silicon
sensor with state-of-the-art microprocessor tech nology to provide
exceptional performance and functionality.It's small volume, light
weight, good environment adaptability, and applicable to all fields.
If using the hand held communicator(sold separately), it can be set
and display via remote operation, without affecting the DC 4~20mA
output signal of transmitter.FCX-AIII series transmitters with safety
funtion have obtained the certificate of SIL certification by TÜV.
The specification of transmitter as shown below:

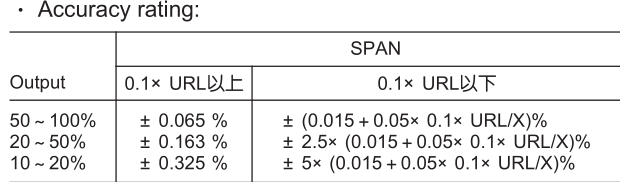

Accuracy rating:
When you need order a Fuji FKC transmitter,pls choose according below:
Ordering information

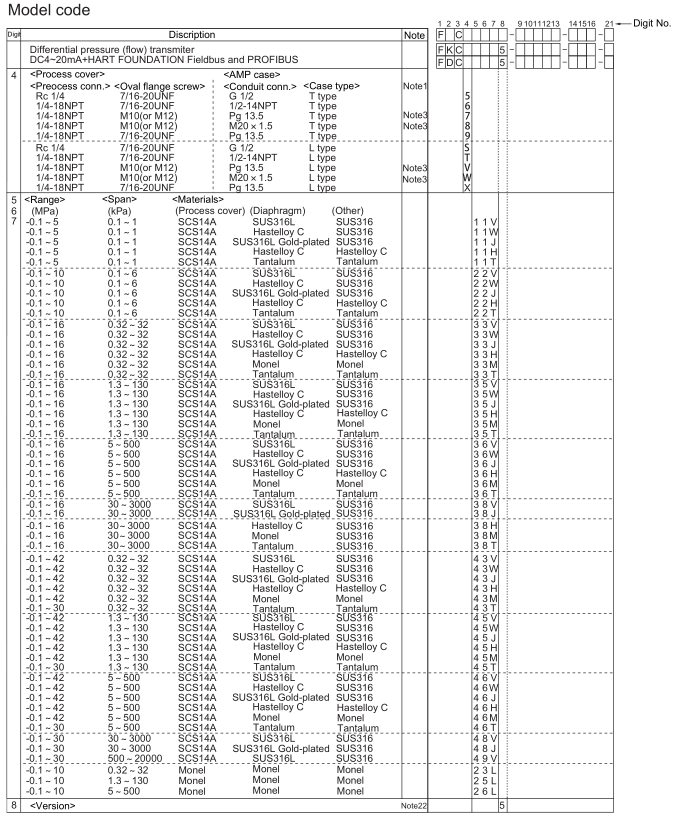

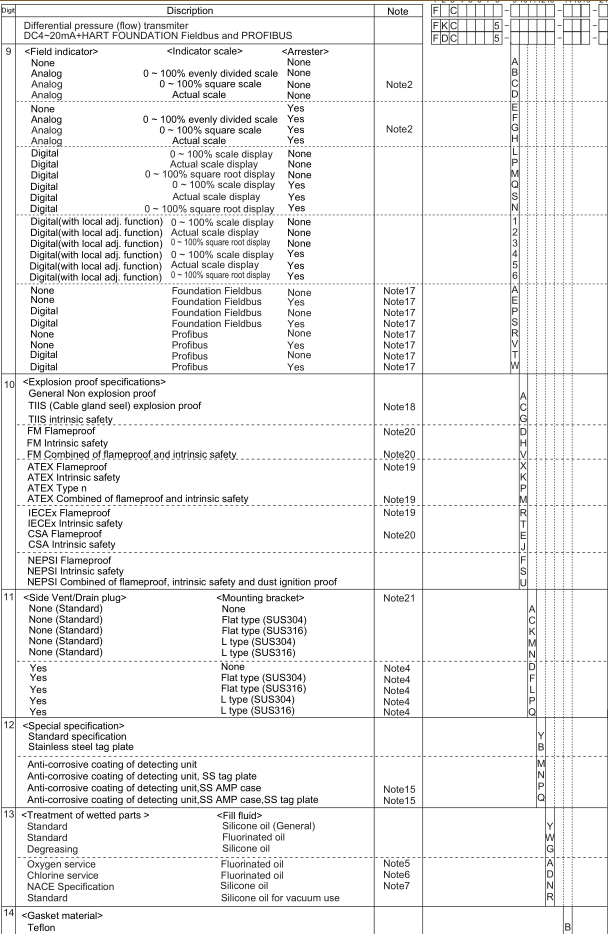

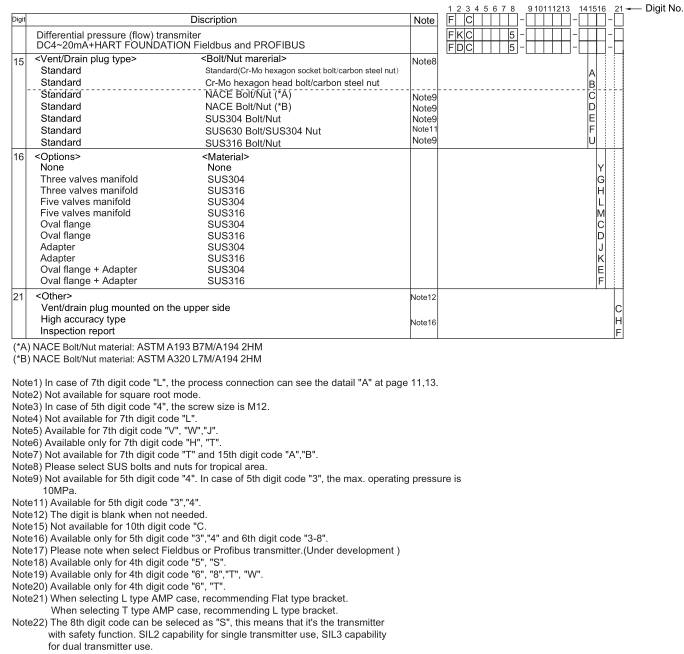

1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code: D、H、P、S), please select the items of display (digit, scale, unit , etc).
6. Please select the tag plate according to need.(up to 14 digit, consist of lettters and numbers).
Above is a details order data sheet ,you can work out a model according it,if it's hard for you,pls feel free to contact me through e-mail: sales6@xatzd.com
