Features of Fuji Zirconia Analyzer
1: The principle of Fuji zirconia sampling diversion, so that the flue gas does not directly contact the structure of the probe, and the flue gas does not erode the zirconium cell (core component), which can greatly extend the service life.
2: Fuji zirconia has a unique zirconium cell recovery function, which doubles the service life of the zirconium cell.
3: With RS232 (standard) and RS485 (option) communication functions, it not only simply measures the concentration of 02, but also displays the combustion efficiency of the boiler at the same time.
4: The four components of the Fuji zirconia probe (zirconium cell, heater, thermocouple, terminal) are a complete module, other zirconia are split structures, the biggest advantage of the integrated zirconia probe is easy maintenance
5: T90 response time, the response speed of the zirconia detector to this change, the faster the response speed, the shorter the T90 time, and the better the adjustment effect of the air-fuel ratio.
6: The warm-up time refers to the time from when the power is turned on to when it can be measured stably. The shorter the time, the better.
7: Power consumption, normal 70W, maximum 240W
8: Thermocouple Fuji R-type platinum rhodium platinum thermocouple, excellent stability
9: Interchangeability, Fuji zirconia has complete interchangeability, high temperature type, low temperature type, different insertion depths, all use the same specification of the probe, easy to exchange and inventory.

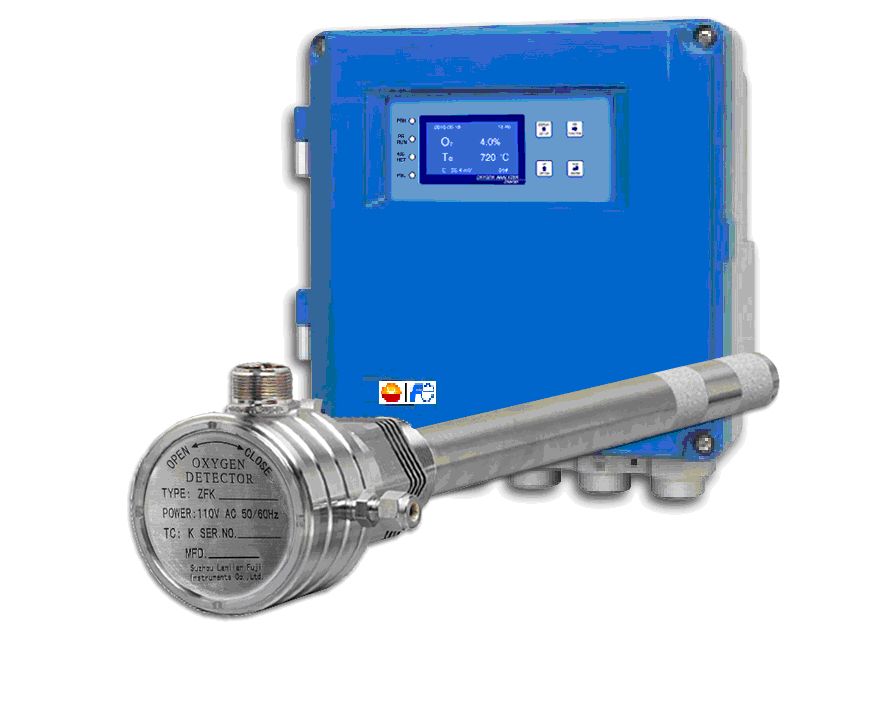

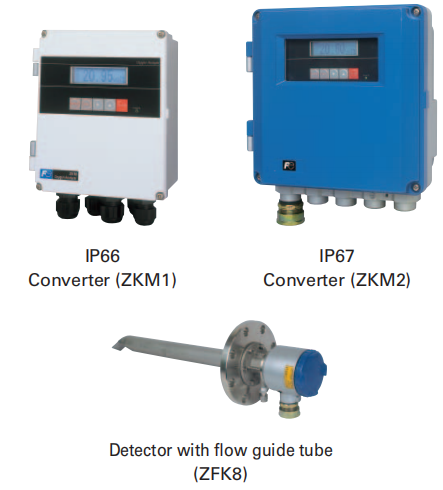

10： Below is product surface of Fuji Zirconia Analyzer
