YANKE ZPZD31 SERIES POSITIONER

                                                                                                                YANKE ZPZD31 SERIES POSITIONER

1) Product Introduce

The ZPZD31 series intelligent valve positioner is a microprocessor-based electro-pneumatic valve positioner. It can be controlled

The manufacturing equipment receives DC signals and controls the opening of valves. In addition to this basic function, the ZPZD31 also has the ability to pass

The information capability, automatic configuration program and self-diagnostic function can enhance productivity and the production efficiency of the factory.

2) Main feature

Innovative nonlinear adaptive PID control, with super robust stability and strong anti-interference ability, is widely applicable to different control objects.

※ Quick debugging and setting. The debugging and setting time for control valves with a stroke of 60mm or less (DN200 diameter) is less than 2 minutes.

Large-diameter valves are based on the air source

The flow can all be quickly adjusted.

※ Traffic configuration control can be selected by default or customized by the user.

※ Position feedback is implemented by software and can change the feedback form to meet the specific requirements of users.

※ HART protocol or FF bus module can be optionally configured;

※ Strong environmental adaptability. The temperature range is available from -40℃ to +70℃ and from -50℃ to +85℃

It is configured for use and can resist shock, vibration and strong electromagnetic interference

It is extremely convenient to debug and use

• Automatic Settings

Its automatic setting software is a fully automatic configuration program. Unlike other brands of smart locators, the ZPZD31 does not require external devices.

The basic configuration does not require a computer or a dedicated communicator. Just press the setting power button once and the program will

run automatically to complete the installation and debugging work.

Users can set their own traffic characteristics

Users can set the input/output characteristics of the positioner by themselves, thereby correcting the overall characteristics of the valve to cope with specific production processes.

Self-diagnosis

The self-diagnostic program of ZPZD31 ensures rapid and accurate troubleshooting measures for control valves

3) Positioner Functional specifications

Applicable enforcement actuator

Single-acting actuators and double-acting actuators

• Linear stroke actuator and angular stroke actuator

Certificate

The ZPZD31 model product has passed the CNEX explosion-proof safety certification

Flameproof grade: Ex ia IIC T4Gb and Exd IICT4-T6Gb

Certificate Numbers: GYB19.1170X and GYB19.1168X

Control signal input

4-20mA DC signal (Adjustable range configuration - minimum range of 4mA)

Input impedance

Basic type: Maximum 300Ω 20 mA DC

Communication protocol function type: Up to 800Ω 20 mA DC

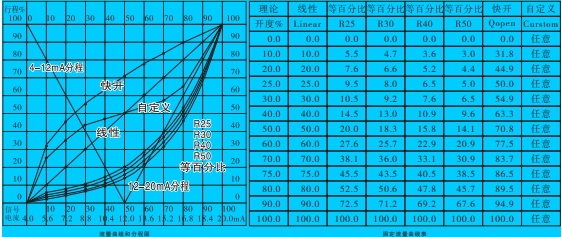

Output characteristics

• Linear, equal percentage, fast opening

• User-defined features (16 points)

Valve stem stroke

Feedback rod Angle: ± 4° to ± 20°

Valve stem rotation Angle: Maximum 90° (angular travel actuator)

Bypass operation

Automatic/manual switch (only for single-acting actuators)

Air supply

140 to 700 kPa (1.4 to 7.0 kgf/cm²)

Stable gas consumption

4 l (N)/ minute (maximum value at 140 kPa (1.4 kgf/cm²))

5 l (N)/ minute (maximum value at 280 kPa (2.8 kgf/cm²))

6 l (N)/ minute (maximum value at 500 kPa (5.0 kgf/cm²))

The maximum value at 10 l (N)/ minute (400 kPa (4.0 kgf/cm²) for double-acting actuators)

Maximum air supply flow rate

It is 110L (N)/ minute at 140 kPa (1.4 kgf/cm²)

It is at 400 kPa (4.0 kgf/cm²)

Output balanced pressure

55+5% (Only for double-acting actuators)

Lightning protection

Peak surge voltage: 12 kV Peak surge current: 1000A

Vibration allowable value

When equipped with standard installation components: 2G (5 to 400 hours)

Ambient temperature limit: -40°C to 70°C

Or a range of -50°C to 85°C is optional

The relative humidity ranges from 10% to 90%

Valve position feedback: Available in options such as 4 ~ 20mADC, etc

Intelligent communication protocol: 4 ~ 20mADC+HART

Function Description

Accuracy: For the case where 8 mA < input signal range < 16 mA: ± 1% F.S. (For user-defined output characteristics, it is ± 2.5%)

For the case where 4 mA < input signal range < 8 mA: ± 1.5% F.S. Sensitivity: 0.4%FS

Repeatability: 1.0%FS dead zone: Adjustable from 0.4% to 10%

Output features: Linear, equal percentage, quick opening, custom curve

Physical description

Protection grade: IP65

Paint: Acrylic baking varnish

Material: Main body: Cast aluminum; Auxiliary amplifier cover: PBT

Weight: 1.7-2.5 KG

Installation

Air interface: 1/4NPT, G1/4 internal thread or M10X1 external thread

Electrical interface: 1/2NPT, G1/2 or M20X1.5 internal thread

Gas supply conditions: Maximum particle diameter: 3 μ m Oil mist: Not allowed

Dew point: More than 10°C lower than the ambient temperature

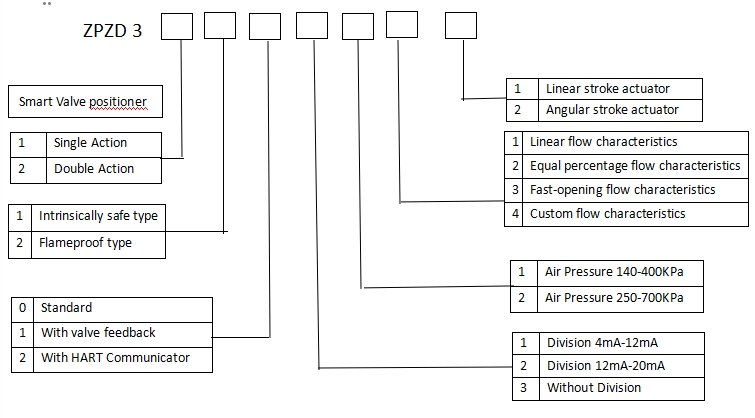

4） How to Order:

Ordering Instructions

When placing an order, please fill in the order form according to the standard model, specification and parameter code of our company.

The contract order should specify the model and stroke of the actuator.

When the user connects the air line interface with a φ6mm pipe, it should be specified when placing an order.
