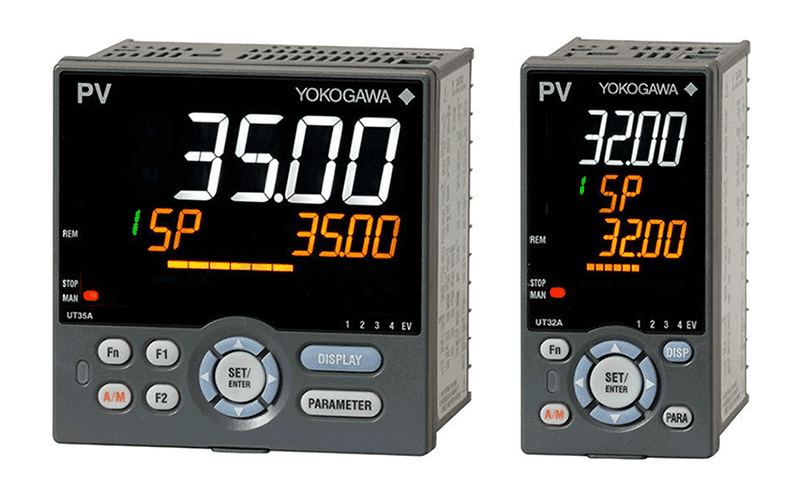

The UT35A and UT32A temperature controllers feature a large, easy-to-read 14-segment color LCD display with navigation keys for greatly enhanced monitoring and operation capabilities. Ladder sequence function is standard. The short depth of the controls helps save dash space. The UT35A/UT32A also supports open networks such as Ethernet communication.
YOKOGAWA Temperature Controller UT35A and UT32A Temperature Controller Features
4 target setpoints (PID number) as standard
3 alarm-independent common terminals as standard
Ladder program can be constructed
easy to use
Up to 8 DOs (combinations available)
Multilingual operation manuals are available (Japanese, English, German, French, Spanish, Chinese and Korean). Please specify the desired language when ordering.
Detailed code models are available to customize to the specification that best suits you.
Advanced Control
control mode
Control mode allows easy configuration of settings and parameter changes.
single loop control
5 built-in control types
PID control
ON/OFF control (1 point hysteresis)
ON/OFF control (2-point hysteresis)
Two-position, two-level control
Heating/Cooling Control
Heating/Cooling Control
For the corresponding relationship between the above control methods and the control types of each model, please refer to the manual.
Trapezoidal sequence control
With built-in trapezoidal sequence control, the range of applications is significantly increased. This feature is standard on all UTAdvanced controllers (except UM33A). The ladder sequence function can replace the small PLC required by the application. Sequence control and PID control can be performed simultaneously.
Monitoring and control of external machinery
For example: lights, switches, timers
Easily address digital input/output logic functions.
Basic Command Type
Number: 13 Number of Application Command Types: 73
We usually have many stock for common model of it, for more details about this products,pls feel free to contact us through sales6@xatzd.com
